SML-635-1-4-R
Feature

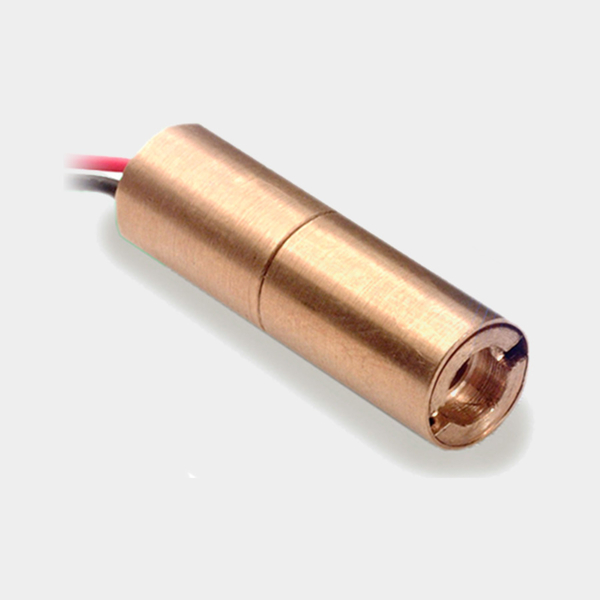

Red Laser Module
Wavelength: 635nm (typ.)
Output Power: 1mW
Package: ø8mm (RoHS compliant)
Length: 14mm (*see image)
Applications
Barcode Reader
Industrial Alignment & Positioning
Laser Pointer
Description
Absolute Maximum Ratings
(Ta=25°C)
|
Items
|
Symbols
|
Values
|
Units
|
|
Optical Output
Power |
Po
|
1
|
mW
|
|
Operating
Voltage |
VCC
|
+3
|
V
|
|
Operating
Temperature |
Topr
|
-10 to +40
|
°C
|
|
Storage
Temperature |
Tstg
|
-40 to +80
|
°C
|
Electrical and Optical Characteristics
(Ta=25°C)
|
Item
|
Symbols
|
Min.
|
Typ.
|
Max.
|
Unit
|
Condition
|
|
Operating
Current |
Iop
|
–
|
–
|
50
|
mA
|
CW
|
|
Supply
Voltage |
Vcc
|
–
|
+3
|
–
|
V
|
–
|
|
Beam (*2)
Divergence |
2Θr
|
–
|
–
|
0.5
|
mrad
|
–
|
|
Peak
Wavelength |
λp
|
630
|
635
|
640
|
nm
|
–
|
Additional information
| Colour | Red (635 – 685nm) |
|---|---|
| Wavelength | 635nm |
| Power Output | 1mW |
| Operating Voltage | 3 |
| Operating Current | 50 Max. |
