SP-6209
Description

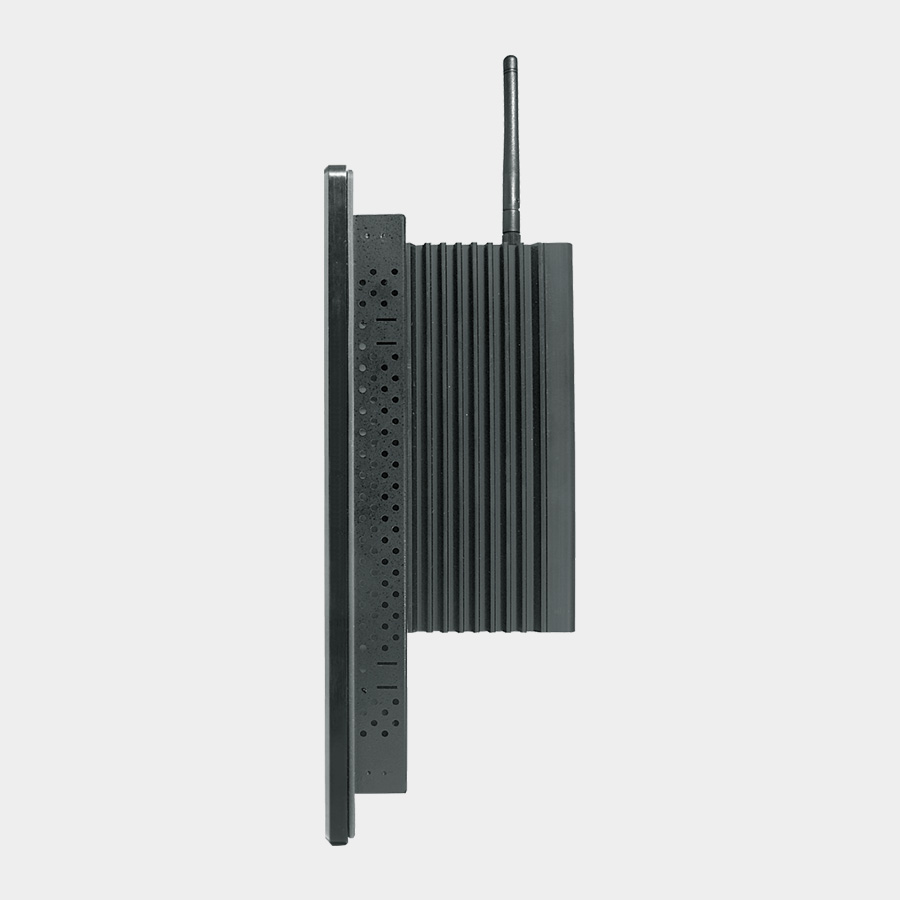

The SP-6209 is a high performance panel mount panel PC with multi-processing support due to the Intel Corei series CPU and is designed to be lowered into the front of a cabinet. The built-in 19″ LCD panel provides 1280 x 1024 (SXGA) resolution, and the 5-wire resistive touch sensor provides precise control.
The Gigabit LAN, USB3.0 and four COM ports are among the many I/O ports available, along with optional 802.11g/n wireless, and PCI-e x4 slot expansion.
Features
19″ High Performance Panel PC
Supports Dual/Quad Core CPU
Dual 1000Mbps LAN
5 wire resistive touch screen
Support up to 16GB of RAM
Optional 75/100mm VESA mount
IP65 Stainless Steel bezel
Suitable for:
Factory Control
Industrial Automation
Downloads:
Description
|
CPU Type
|
Intel Core i3/i5/i7 (rPGA-988 Embedded) with QM77 or HM76 chipset
|
|
Memory Support
|
2pcs x DDR-3 SO-DIMM socket (up to 4GB)
|
|
Front Bezel
|
Stainless Steel
|
|
Waterproof Level
|
IP65 front side
|
|
Power Supply
|
9-36V DC input, optional AC-DC power supply
|
|
O/S Support
|
Win XP / 7
|
|
Dimension
|
471 x 396 x 133mm
|
|
Basic System Weight
|
TBC
|
|
VESA support
|
100mm VESA bracket (optional)
|
|
Certificate
|
CE / FCC
|
I/O Ports
|
Drive Bays
|
1 x 2.5″ SATA HDD, 1 x CFast slot onboard, and 1 x slim SATA CD
|
|
USB
|
4 x USB 3.0
|
|
Serial Ports
|
4 x 9-pin*, COM2 for RS232/422/485
|
|
Parallel
|
1 x 25-pin, supporting SPP, EPP and ECP
|
|
Keyboard/Mouse
|
n/a
|
|
LAN
|
2 x 10/100/1000Mbps
|
|
Wireless LAN
|
Optional 802.11b/g/n card
|
|
Audio
|
Line-out, MIC
|
|
Expansion
|
2 x PCI-e x4
|
|
VGA
|
1 x 15-pin VGA
|
|
Digital I/O
|
8 in / 8 out
|
|
LCD
|
19″ SXGA TFT LCD
|
|
Touch Screen
|
5 wire analogue resistive (USB interface)
|
Environment
|
Temperature
|
Operating: -5 to 45°C, Storage: -20 to 80°C
|
|
Humidity
|
10 to 90%
|
Additional information
| Screen Size | 19" |
|---|---|
| Core | Intel, Intel Core i3, Intel Core i5, Intel Core i7 |
| Expansion | CFast, mini PCI-e, PCI-e, SIM Card |
| Mount Type | Panel Mount, VESA Mount |
| Operating System (OS) | Windows 7, Windows XP |
| Operating Temperature | -5°C to 45°C |
| IP Rating | IP65 Front Side (Only) |
