SP-7627

Description

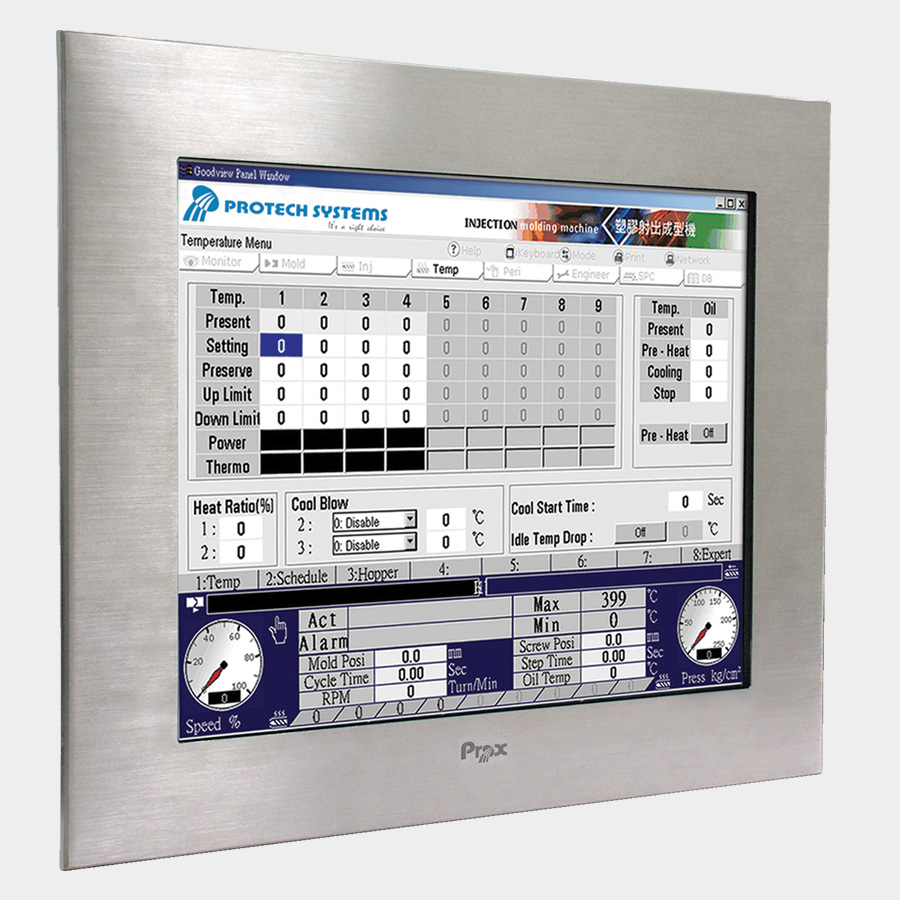

The SP-7627 is a high performance panel mount panel PC with multi-processing support due to the Intel Core i3/i5 CPU and is designed to be lowered into the front of a cabinet. The built-in 17″ LCD panel provides 1280 x 1024 (SXGA) resolution, and the 5-wire resistive touch sensor provides precise control.
The dual Gigabit LAN and four COM ports are among the many I/O ports available, along with optional 802.11g/n wireless, and expansion through 2 x PCI slots.

Features

17″ High Performance Panel PC
Supports Core i3/i5 CPU
Dual Gigabit LAN
5 wire resistive touch screen
Support up to 16GB of RAM
Optional 75/100mm VESA mount
Stainless Steel front bezel

Suitable for:

Factory Control
Industrial Automation

Downloads:

SKU: 17" SST Bezel Intel Core-i (3rd gen.) HMI Terminal (Panel Mount) Categories: , Tags: , , ,

Description

CPU Type
Intel Core i3 / i5 (3rd gen.) and Pentium (up to 3GHz)
Memory Support
2pcs x DDR-3 SO-DIMM socket (up to 16GB)
Front Bezel
Stainless Steel
Waterproof Level
IP65 front side
Power Supply
220W ATX AC power supply
O/S Support
Win 7 and 7e
Dimension
452 x 366 x 90.8mm
Basic System Weight
9kg
VESA support
75mm / 100mm VESA bracket (optional)
Certificate
CE / FCC

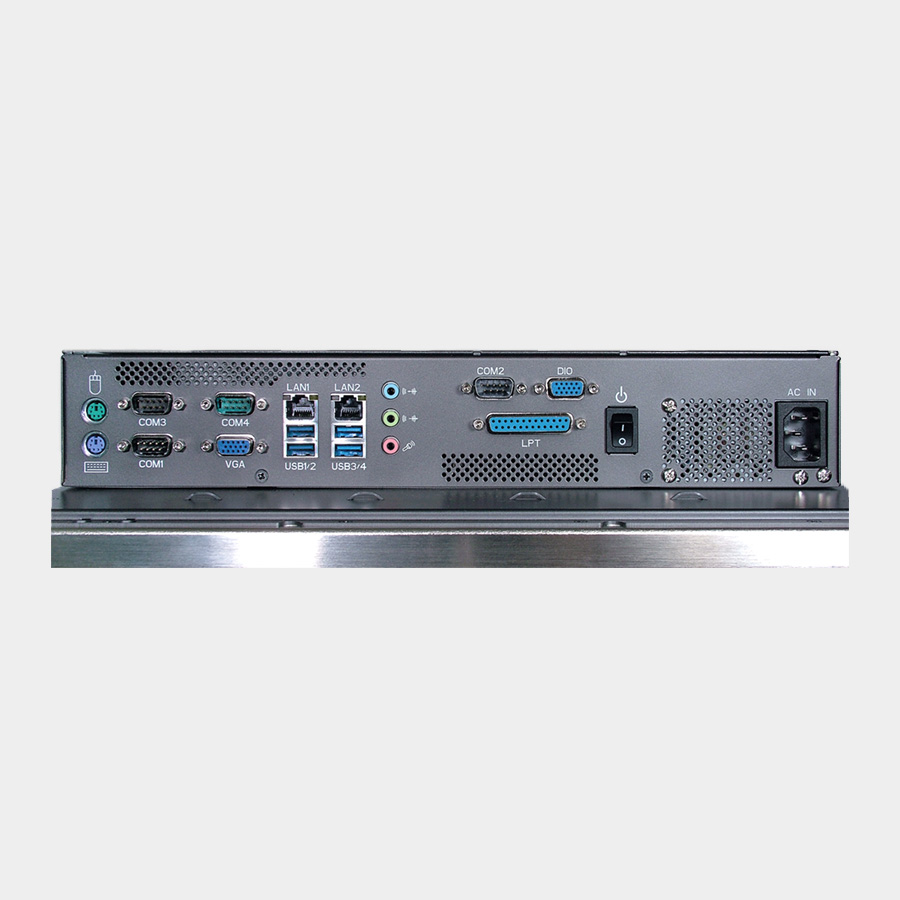

I/O Ports

Drive Bays

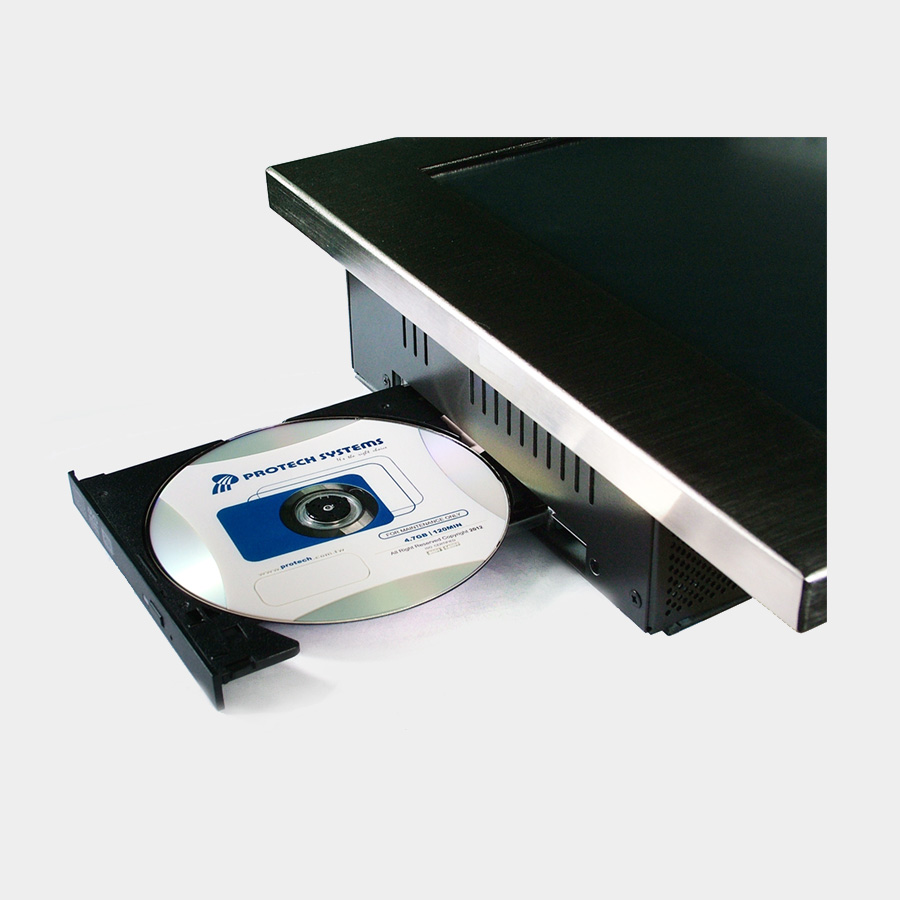

2 x 2.5″ SATA HDD, and 1 x slim SATA DVD
USB
4 x USB 3.0
Serial Ports
4 x 9-pin*, COM2 for RS232/422/485
Parallel
1 x 25-pin, supporting SPP, EPP and ECP
Keyboard/Mouse
2 x PS/2
LAN
2 x 10/100/1000Mbps
Wireless LAN

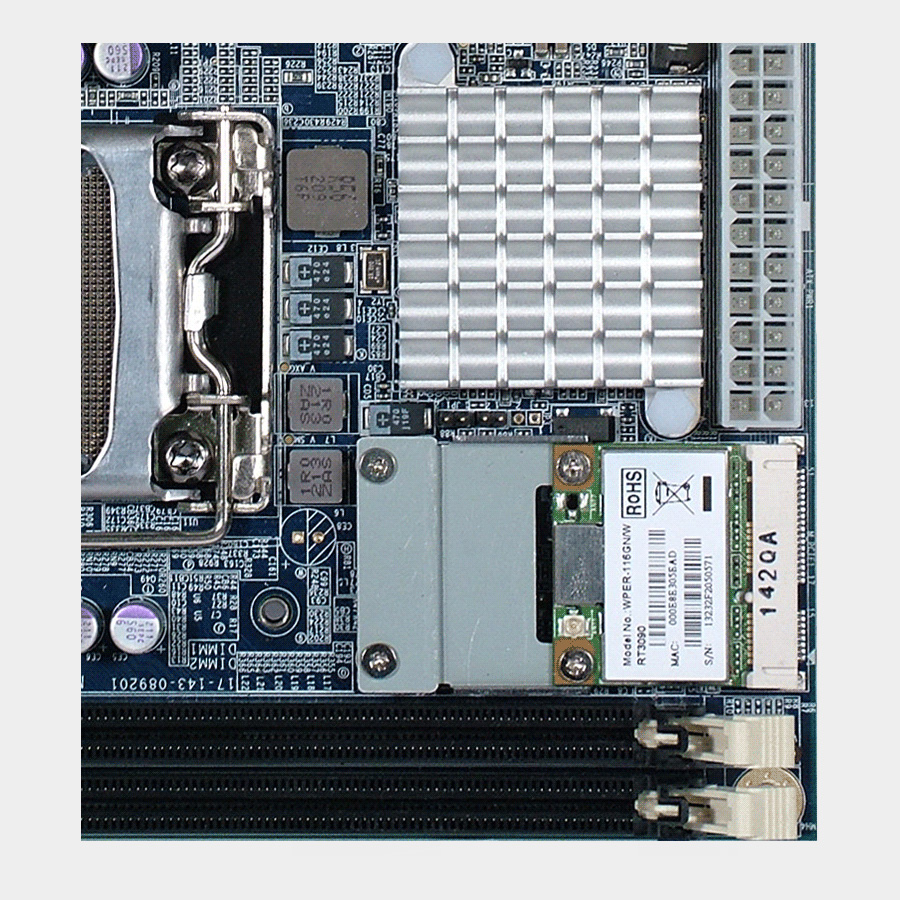

Optional 802.11b/g/n card
Audio
Line-in, Line-out, MIC
Expansion
2 x PCI
VGA
1 x 15-pin VGA
Digital I/O
4 in / 4 out
LCD
17″ SXGA TFT LCD
Touch Screen
5 wire analogue resistive (USB interface)

Environment

Temperature
Operating: 0 to 50°C, Storage: -20 to 80°C
Humidity
20 to 90%

Additional information

Screen Size

17"

Core

Intel, Intel Core i3, Intel Core i5

Expansion

PCI

Mount Type

Panel Mount, VESA Mount

Operating System (OS)

Windows 7, Windows 8.1

Operating Temperature

0°C to 50°C

IP Rating

IP65 Front Side (Only)
