Product Description
|
CPU Type
|
Intel Atom D2550 (1.86GHz)
|
|
Memory Support
|
1pcs x DDR-3 SO-DIMM socket (up to 4GB)
|
|
Front Bezel
|
Stainless Steel
|
|
Waterproof Level
|
IP65 front side
|
|
Power Supply
|
130W AC internal
|
|
O/S Support
|
Win 7 or 7e
|
|
Dimension
|
497 x 420 x 93.4mm
|
|
Basic System Weight
|
10.2kg
|
|
VESA support
|
75mm / 100mm VESA bracket (optional)
|
|
Certificate
|
CE / FCC
|

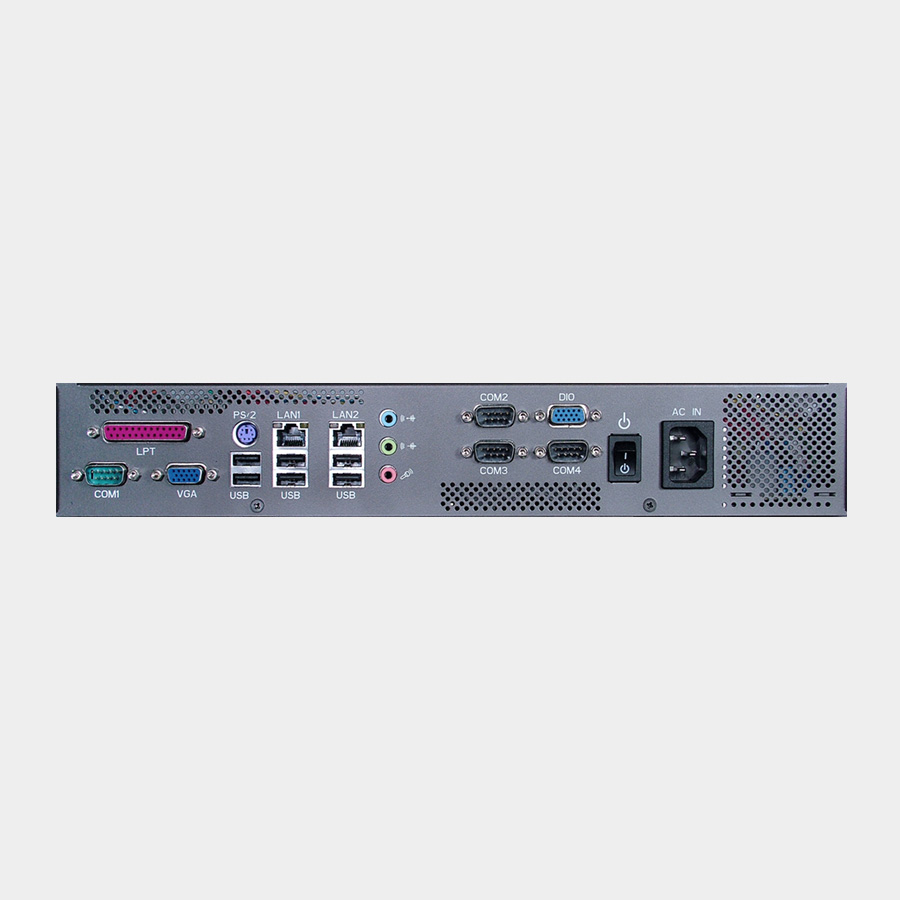

I/O Ports
|
Drive Bays
|
2 x 2.5″ SATA HDD or 1 x 2.5″ SATA HDD and 1 x slim SATA DVD
|
|
USB
|
6 x USB 2.0
|
|
Serial Ports
|
4 x 9-pin*, COM2 for RS232/422/485
|
|
Parallel
|
1 x 25-pin, supporting SPP, EPP and ECP
|
|
Keyboard/Mouse
|
1 x PS/2
|
|
LAN
|
2 x 10/100/1000Mbps
|
|
Audio
|
Line-in, Line-out, MIC
|
|
Expansion
|
2 x PCI
|
|
VGA
|
1 x 15-pin VGA
|
|
Digital I/O
|
4 in / 4 out
|
|
LCD
|
19″ SXGA TFT LCD
|
|
Touch Screen
|
5 wire analogue resistive (USB interface)
|
Environment
|
Temperature
|
Operating: 0 to 50°C, Storage: -20 to 80°C
|
|
Humidity
|
20 to 90%
|
