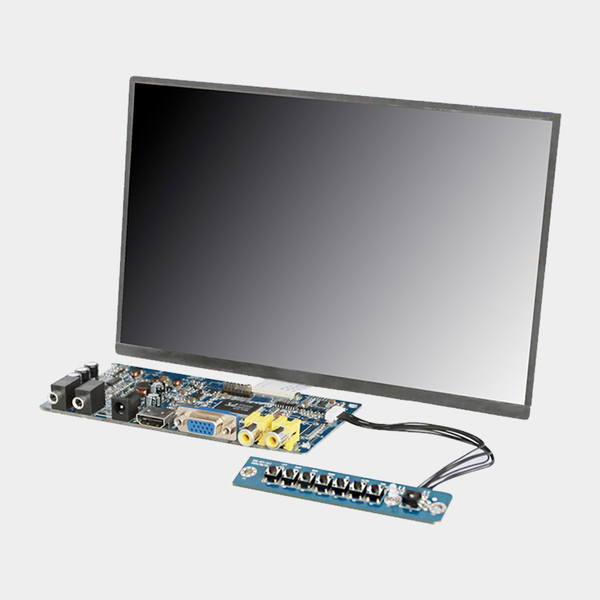

10.1" WSVGA/FWXGA LCD Panel with board kit

SPK-SKD101AH(T)-x

Description

The SPK-SKD101VA(T)-x is a 10.1″ LCD panel and board kit designed for small kiosk screens and mobile devices.
The 10.1″ LCD panel uses an edge LED backlight for low power usage, and provides 1024×600 (WSVGA) or 1366×768 (FWXGA) resolution, and has an optional resistive touch screen built-in.

Features

10.1″ LCD Panel & board kit
Native Resolution 1024×600 or 1366×768
Luminance: 250-450cd/m2
Contrast Ratio: 500:1
Edge LED Backlight
Colour Depth: 16.7M
Optional Resistive Touch
VGA, CVBS, and optional HDMI input
SKU: 10.1" WSVGA/FWXGA LCD Panel with board kit Category: Tags: , ,

Product Description

Screen Size
10.1″, -A 1024×600, -B 1024×600, -C 1366×768 resolution
Display Colours
16.7M
Luminance
Typ. -A 250cd/m2, -B 450cd/m2, -C 250cd/m2
Contrast Ratio
Typ. 500:1
Viewing Angle
Horizontal: Typ. 50°/50°, Vertical: Typ. 30°/50°
Backlight Type
Edge LED
Touch Screen (Option)
4 or 5-wire Resistive (USB), SPK-SKD823VAT-9
Panel Dimension
229.5 x 149 x 2.4 mm
Power Supply
DC 12V, <6W

Connectors

Inputs
VGA, 2 x CVBS, Audio Line-in and optional HDMI
Outputs
Headphone

Environment

Operating Temperature
-20 to 60°C
Storage Temperature
-30 to 70°C

Additional Information

Screen Size

10.1″
Monitor Type

Panel – Kiosk
Brightness

-A 250cd/m2, -B 450cd/m2, -C 250cd/m2
Inputs

Audio Line-in, HDMI, VGA
Touch Type

Resistive, SPK-SKD823VAT-9
