SPK-SKD8VA(T)-9
Description

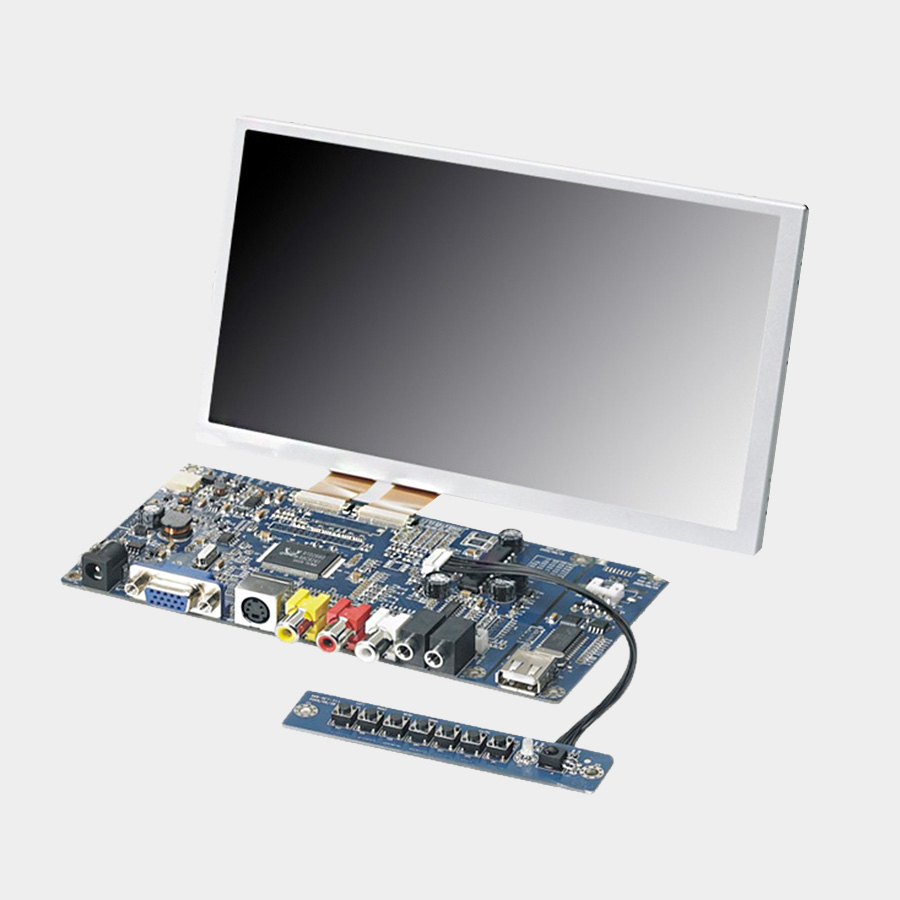

The SPK-SKD8VA(T)-9 is a 8″ LCD panel and board kit designed for small kiosk screens and mobile devices.
The 8″ LCD panel uses an edge LED backlight for low power usage, and provides 800 x 480 (WVGA) resolution, and has an optional resistive touch screen built-in.
Features
8″ LCD Panel & board kit
Native Resolution 800×480
Luminance: 250cd/m2
Contrast Ratio: 300:1
Edge LED Backlight
Colour Depth: 262k
Optional Resistive Touch
VGA, CVBS, S-Video and optional HDMI input
Description
|
Screen Size
|
8″, 800 x 480 resolution
|
|
Display Colours
|
262k
|
|
Luminance
|
Typ. 250cd/m2
|
|
Contrast Ratio
|
Typ. 300:1
|
|
Viewing Angle
|
Horizontal: Typ. 70°/70°, Vertical: Typ. 50°/60°
|
|
Backlight Type
|
Edge LED
|
|
Touch Screen (Option)
|
4 or 5-wire Resistive (USB), SPK-SKD8VAT-9
|
|
Panel Dimension
|
192.8 x 116.9 x 3.4 mm
|
|
Power Supply
|
DC 12V, <6W
|
Connectors
|
Inputs
|
VGA, CVBS, S-Video, Audio Line-in and optional HDMI
|
|
Outputs
|
Headphone
|
Environment
|
Operating Temperature
|
-20 to 60°C
|
|
Storage Temperature
|
-30 to 70°C
|
Additional information
| Screen Size | 8" |
|---|---|
| Monitor Type | Panel – Kiosk |
| Inputs | Audio Line-in, HDMI, S-Video, VGA |
| Brightness | 250cd/m² (Typ) |
