SRT-55BT-v1
Description

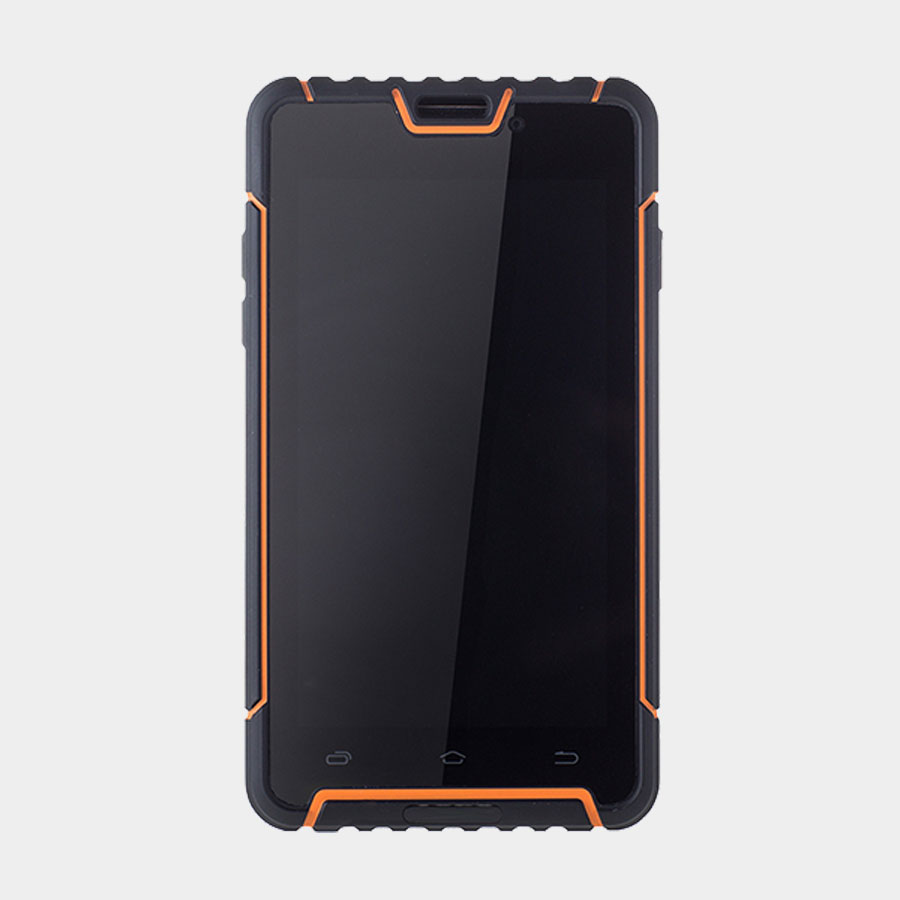

The SRT-55BT-v1 is an IP67 rated 5″ rugged handheld PC based around the low power MediaTek MT6735 CPU. The built-in 5″ widescreen LCD panel provides 1280 x 720 (HD/WXGA) resolution, and the multi-point capacitive touch sensor provides precise control.
The built-in WiFi, WWAN (with SIM slot), Bluetooth and NFC offers a wide range of communication options, and memory expansion is possible up to 64GB with micro-SD.
Features
Compact Low Power Tablet PC
5″ (1280 x 720)
Fully Rugged Design
Meets IP67 standard
Built-in WiFi 802.11 a/b/g/n

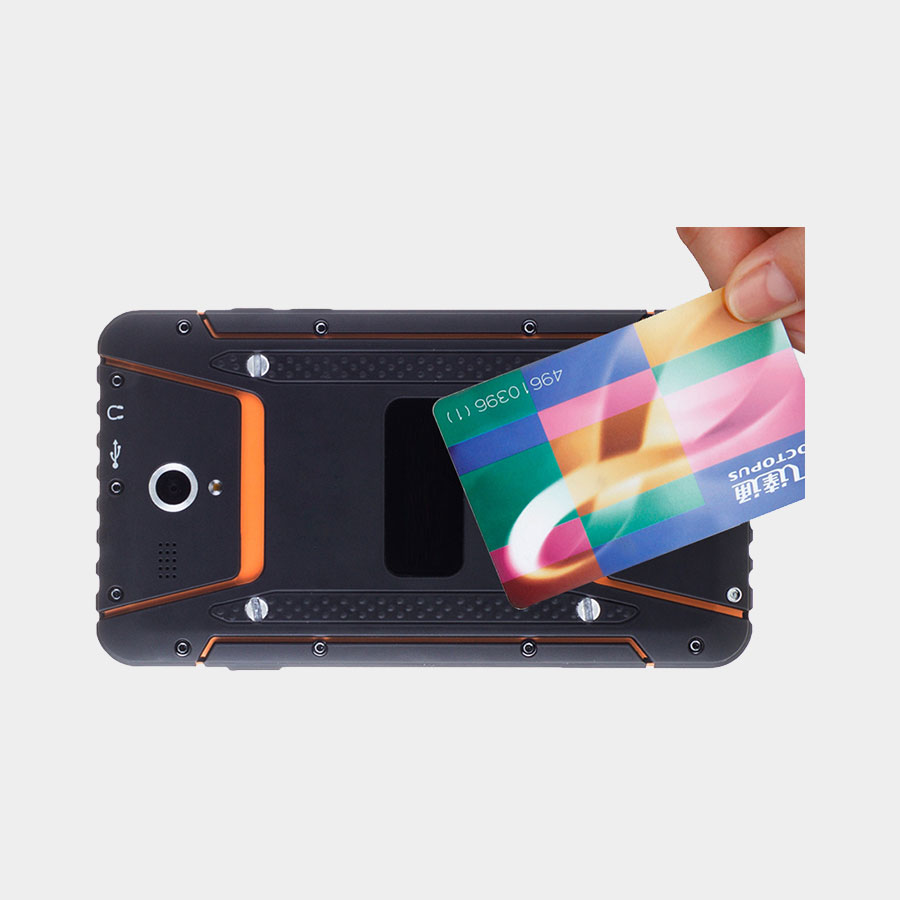

Built-in NFC
Android 5.1
4,200mAh battery for long usage
Downloads:
Description
|
CPU Type
|
MediaTek MT6735 Cortex-A53 (1.5GHz Quad-core)
|
|
GPU Type
|
Mali-T720
|
|
Memory + Storage
|
2GB RAM + 16GB Flash ROM
|
|
Battery Type
|
4,200mAh
|
|
Power Supply
|

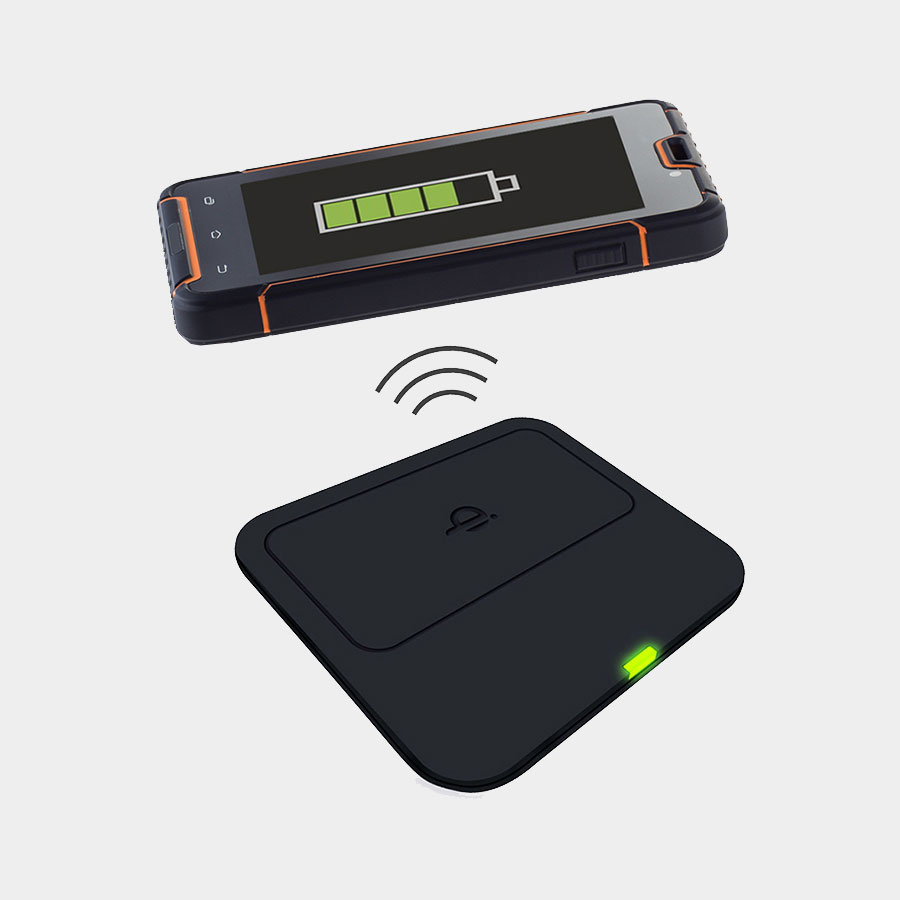

Mini-USB for charging (5V/2A) or optional QI wireless charging (charging plate available seperately)
|
|
LCD
|
5″ HD/WXGA TFT LCD (sunlight readable, 500 nits)
|
|
Touch Screen
|
5-point Projected Capacitive with Corning Gorilla III glass
|
|
O/S Support
|
Android 5.1
|
|
Wireless
|
802.11a/b/g/n WLAN & 4G WCDMA & GSM WWAN
|
|
Bluetooth
|
Bluetooth 4.0 class II
|
|
GPS
|
Support A-GPS and EPO
|
|
NFC
|
NXP547
|
|
Camera
|
Front: 5 Mega Pixel, Rear: 13 Mega Pixels with dual LED flash/auto focus
|
|
Sensors
|
Light Sensor, Proximity Sensor and Magnetic Field Sensor
|
|
Reliability
|
MTBF > 50,000h, MTTR < 0.5h
|
|
Dimension
|
154 x 84 x 17mm
|
|
Basic System Weight
|
250g (with battery pack)
|
|
Certificate
|
CE / FCC
|
|
IP Rating
|
IP67
|
|
Drop Test
|
MIL-STD-810G/ Method516.6/ Procedure IV
|
I/O Ports
|
USB
|
1 x mini-USB for Data/OTG/Charging (5V/2A)
|
|
Audio
|
1 x 3.5mm headphone jack
|
|
Storage Expansion
|
1 x MicroSD slot (up to 64GB)
|
|
WWAN card
|
1 x SIM card slot, supporting 4G, 3G, EDGE, GPRS and WAP
|
Environment
|
Temperature
|
Operating: -20 to 60°C, Storage: -40 to 80°C
|
|
Humidity
|
5% to 95% RH
|
Additional information
| Operating System (OS) | Android |
|---|---|
| Screen Size | 5" |
| Core | ARM Cortex A53 |
| Touch Type | 5 Point Capacitive Multi-touch |
| Wireless | 4G, 802.11b/g/n, Bluetooth 4.0, GPS |
