SRT-S501x-v1
Description

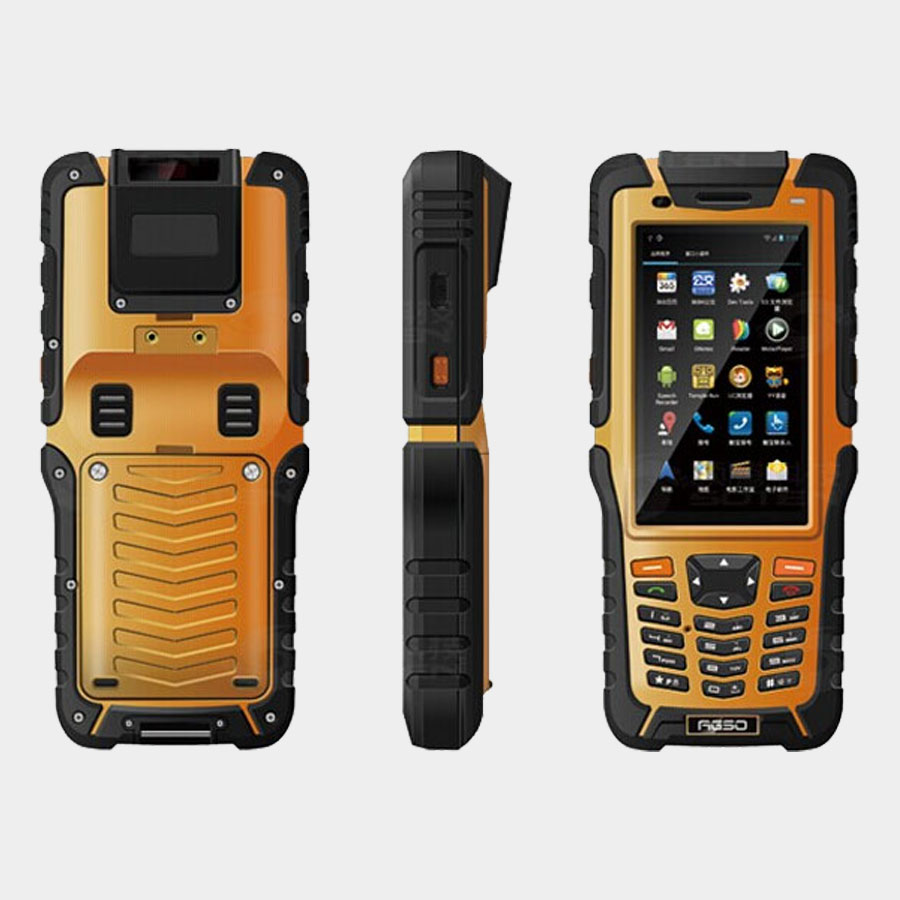

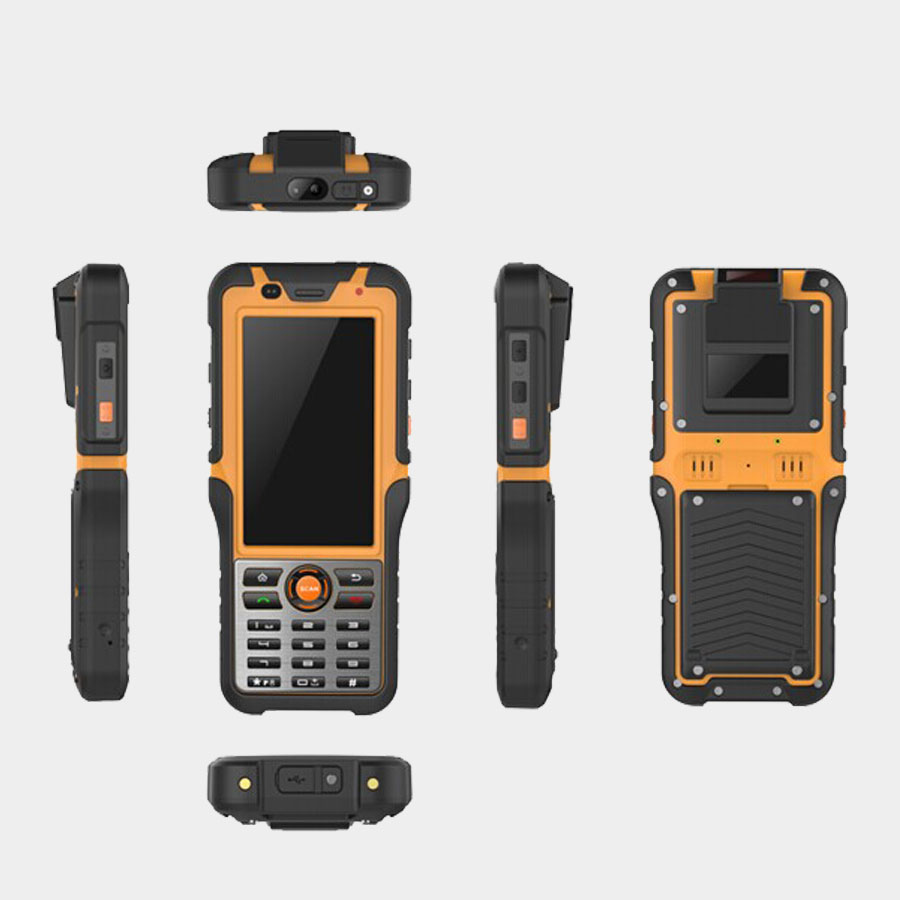

The SRT-S501x-v1 is an IP67 rated 4.5″ rugged handheld PC based around the low power Cortex A7 CPU. The built-in 4.5″ widescreen LCD panel provides 540 x 960 (qHD) resolution, and the multi-point capacitive touch sensor provides precise control.
The built-in WiFi, WWAN (with SIM slot), Bluetooth and NFC offers a wide range of communication options, and memory expansion is possible up to 64GB with micro-SD.
Features
Compact Low Power Tablet PC
4.5″ (540 x 960)
Fully Rugged Design
Meets IP67 standard
Built-in WiFi 802.11 b/g/n
Built-in NFC
Android 4.2.2
5,000mAh battery for long usage
Downloads:
Description
|
CPU Type
|
ARM Cortex-A7 (1.3GHz Quad-core)
|
|
GPU Type
|
Mali-450
|
|
Memory + Storage
|
1GB DDR3 RAM + 16GB Flash ROM (micro-SD slot for upgrade up to 64GB)
|
|
Battery Type
|
5,000mAh
|
|
Power Supply
|
Mini-USB for charging (5V/2A)
|
|
LCD
|
4.5″ qHD TFT LCD (400 nits)
|
|
Touch Screen
|
5-point Projected Capacitive with tempered glass
|
|
O/S Support
|
Android 4.2.2
|
|
Wireless
|
802.11b/g/n WLAN & 3G WCDMA, GSM & TD-SCDMA WWAN
|
|
Bluetooth
|
Bluetooth 4.0 LTE
|
|
GPS
|
Support A-GPS and EPO (Optional BEIDOU or GLONASS)
|
|
NFC
|
Optional with high frequency: 13.56Mhz
|
|
RFID
|
Optional LF or UHF module
|
|
ZigBee
|
Optional DRF1607H / MESH
|
|
Camera
|
8 Mega Pixels with dual LED flash/auto focus
|
|
Barcode Scanner
|
Optional ME966 / 1D or ME5110 / 2D
|
|
Glonass RTD
|
Optional GPS&GLONASS Support SBAS / CORS / 2.5m CEP / 0.5m RTD
|
|
FM Radio
|
Optional (Digital)
|
|
Sensors
|
Direction / Gravity / E-Compass / Rotation Vector / Ambient Light / Proximity / Gyroscope / E-Compass (Temp, Pressure, Altitude optional)
|
|
Chassis Options
|
All ABS+PC, TPU. SunYellow – SRT-S501Y-v1, ArmyGreen – SRT-S501G-v1, Grey – SRT-S501B-v1
|
|
Dimension
|
197 x 92 x 26.5mm
|
|
Basic System Weight
|
380g (with battery pack)
|
|
Certificate
|
CE / FCC
|
|
IP Rating
|
IP67
|
|
Vibration
|
1-19Hz/1.0mm; 19-200Hz/1.0g
|
|
Drop Test
|
MIL-STD-810G / Method 516.6 / Procedure IV
|
I/O Ports
|
USB
|
1 x mini-USB for Data/OTG/Charging (5V/2A)
|
|
WWAN card
|
1 x SIM card slot, supporting 3G
|
Environment
|
Temperature
|
Operating: -20 to 60°C, Storage: -40 to 80°C
|
|
Humidity
|
5% to 95% RH
|
Additional information
| Operating System (OS) | Android |
|---|---|
| Screen Size | 4.5" |
| Core | ARM Cortex A7 |
| Touch Type | 5 Point Capacitive Multi-touch |
| Wireless | 3G, 802.11b/g/n, Bluetooth 4.0, GPS |
