SRT-T701x-v1
Description

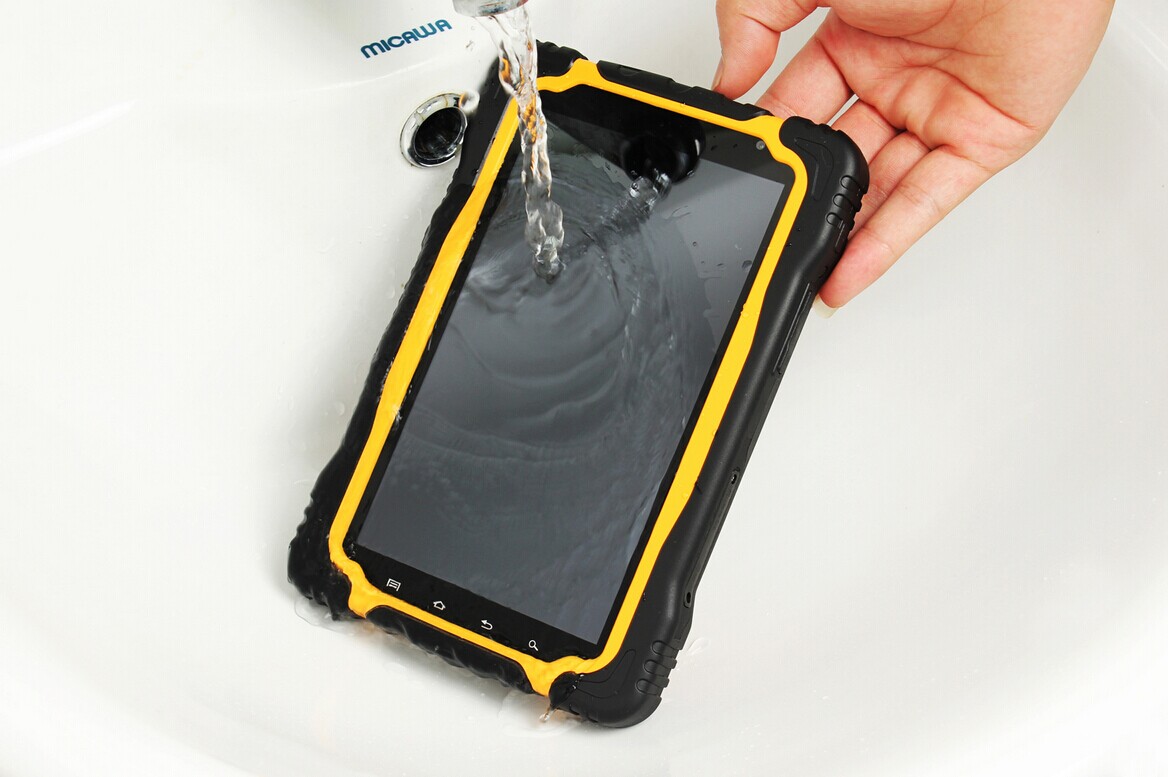

The SRT-T701x-v1 is an IP67 rated 7″ rugged tablet PC based around the low power MediaTek MT6582 CPU. The built-in 7″ widescreen LCD panel provides 1280 x 720 (HD/WXGA) resolution, and the multi-point capacitive touch sensor provides precise control.
The built-in WiFi, WWAN (with SIM slot) and Bluetooth offers a wide range of communication options, and memory expansion is possible up to 64GB with micro-SD.
Features
Compact Low Power Tablet PC
7″ (1280 x 720)
Fully Rugged Design
Meets IP67 standard
Built-in WiFi 802.11 b/g/n
Built-in Bluetooth 4.0
Android 4.2.2
10,000mAh battery for long usage
Downloads:
Description
|
CPU Type
|
MediaTek MT6582 ARM Cortex-A7 (1.3GHz Quad-core)
|
|
GPU Type
|
Mali-400 MP2@533MHz
|
|
Memory + Storage
|
1GB RAM + 16GB Flash ROM
|
|
Battery Type
|
10,000mAh
|
|
Power Supply
|
Mini-USB for charging (5V/2A)
|
|
LCD
|
7″ HD/WXGA TFT LCD (OGS sunlight readable, 450 nits)
|
|
Touch Screen
|
5-point Projected Capacitive with Corning Gorilla III glass
|
|
O/S Support
|
Android 4.4.2
|
|
Wireless
|
802.11b/g/n WLAN & 3G WCDMA & GSM WWAN
|
|
Bluetooth
|
Bluetooth 4.0 class II
|
|
GPS
|
GPS + Glonass (uBlox G8030)
|
|
NFC
|
MTK6505 – Reader supports ISO 15693/15553A/18000-3/Type1-4 Tag/Kovio
Card Emulation supports ISO 14443A/B/Type1-4 Tag/Mifare via CLT/FeliCa RF |
|
Camera
|
Front: 2 Mega Pixel, Rear: 8 Mega Pixels with dual LED flash/auto focus
|
|
Chassis Options
|
All ABS+PC, TPU. SunYellow – SRT-T701Y-v1, ArmyGreen – SRT-T701G-v1, Grey – SRT-T701B-v1
|
|
Dimension
|
208 x 121 x 22mm
|
|
Basic System Weight
|
650g (with battery pack)
|
|
Certificate
|
CE / FCC
|
|
IP Rating
|
IP67
|
|
Drop Test
|
1.5 meters onto concrete, MIL-STD-810G/ Method516.6/ Procedure IV
|

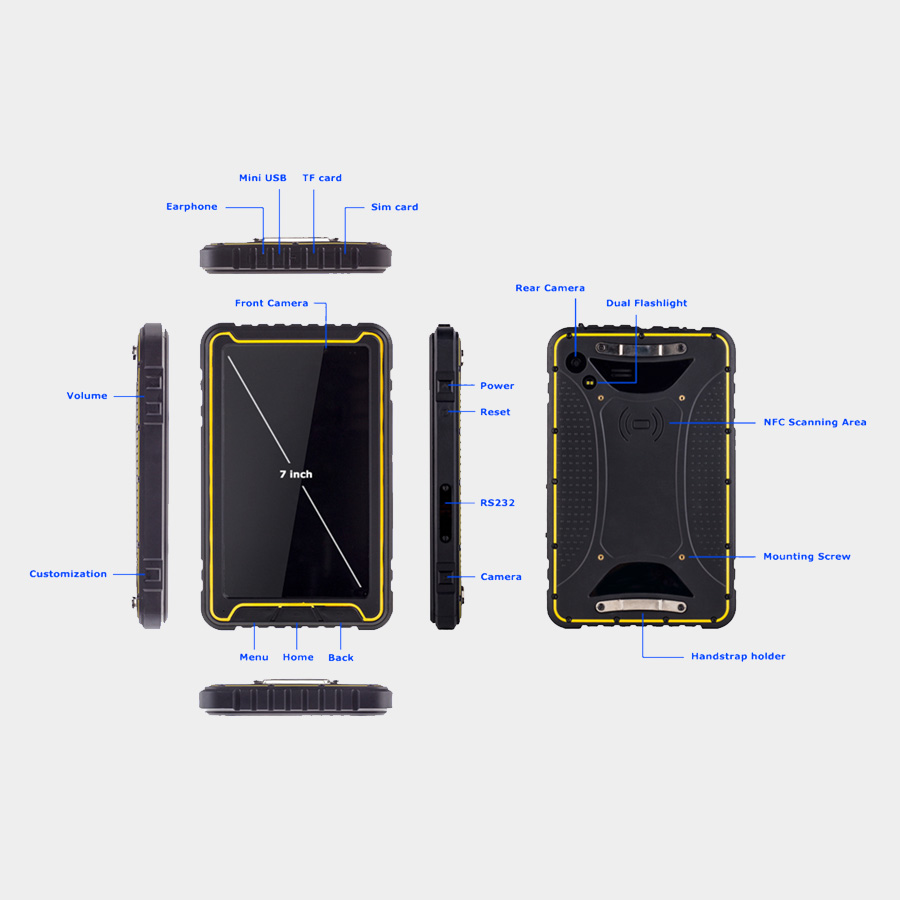

I/O Ports
|
USB
|
1 x mini-USB for Data/OTG/Charging (5V/2A)
|
|
Audio
|
1 x 3.5mm headphone jack
|
|
Storage Expansion
|
1 x MicroSD slot (up to 64GB)
|
|
WWAN card
|
1 x SIM card slot
|
Environment
|
Temperature
|
Operating: -20 to 60°C, Storage: -40 to 80°C
|
|
Humidity
|
5% to 95% RH
|
Additional information
| Operating System (OS) | Android |
|---|---|
| Screen Size | 7" |
| Core | ARM Cortex A7 |
| Touch Type | 5 Point Capacitive Multi-touch |
| Wireless | 3G, 802.11b/g/n, Bluetooth 4.0, GPS |
