STB-1011A-AM
Description

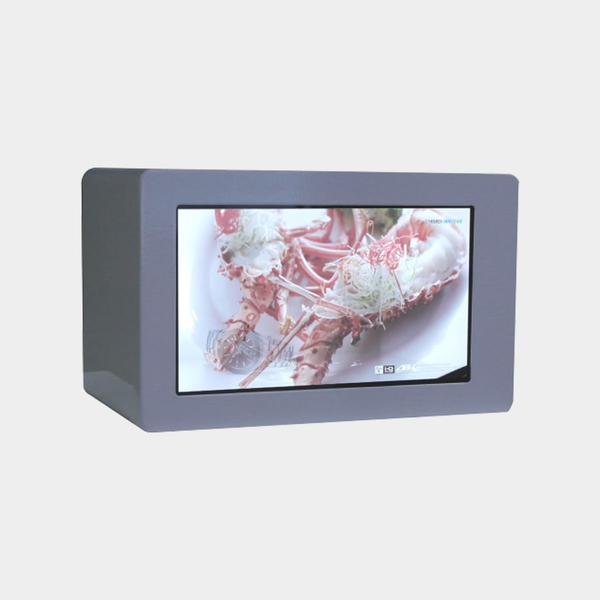

The STB-1011A is a 10.1″ transparent LCD panel built in an LED lit display case, designed for digital signage and information displays.
The 10.1″ LCD panel provides 1366 x 768 resolution, with 1000:1 contrast ratio and 89 degree viewing angles.
Features
10.1″ Transparent LCD Display Case
Native Resolution 1366×768 @60Hz
Contrast Ratio: 1000:1
10% Light Transmission
89 degree Viewing Angle
Built-in Android Media Player
Optional Multi-Point Touchscreen
Description
|
Screen Size
|
10.1″, 1366 x 768 resolution
|
|
Transmittance
|
7% (Typ)
|
|
Contrast Ratio
|
Typ. 1000:1
|
|
Viewing Angle
|
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
|
|
Backlight Type
|
LED inside case (4pcs LED bar)
|
|
Touch Screen
|
Optional PCap multi-touch sensor
|
|
Power Consumption
|
36W
|
|
Dimension
|
TBC Custom cabinet designs are possible on request
|
Computer / Media Player
|
Operating System
|
Android 4.2.2 Media Board
|
|
PC Connectors
|
USB 2.0 x 2, Ethernet
|
|
WiFi
|
820.11b/g/n
|
Environment
|
Operating Temperature
|
0 to 40°C
|
Additional information
| Screen Size | 10.1" |
|---|---|
| Touch Type | Optional multi-touch sensor, Projected Capacitive |
| Transparent Type | Display Case |
| Viewing Angle | 89° / 89° |
