STB-3201
Click to enlarge

32" FWXGA Transparent LCD Display Case

STB-3201

Description

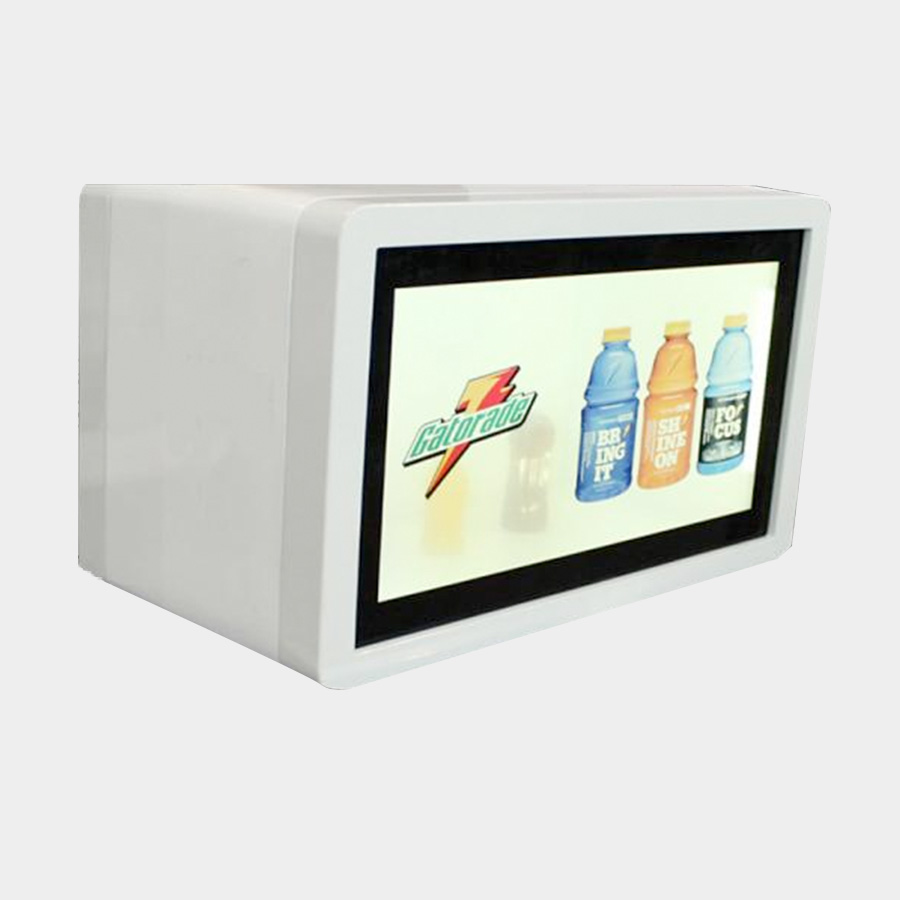

The STB-3201 is a 32″ transparent LCD panel built in an LED lit display case, designed for digital signage and information displays.
The 32″ LCD panel provides 1366 x 768 resolution, with 1200:1 contrast ratio and 89 degree viewing angles.

Features

32″ Transparent LCD Display Case
Native Resolution 1366×768 @60Hz
Contrast Ratio: 1200:1
6.6% Light Transmission
89 degree Viewing Angle
Optional Touch Sensor
Built-in PC/media player
PC Expansion through USB/SD card
SKU: 32" FWXGA Transparent LCD Display Case Category: Tags: , , ,

Product Description

Screen Size
32″, 1366 x 768 resolution
Display Colours
6-bit (262k)
Response Time
8ms (G-to-G)
Transmittance
6.6% (Typ)
Contrast Ratio
Typ. 1200:1
Viewing Angle
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
Backlight Type
LED inside case
Touch Screen
Optional multi-touch sensor
Power Input
TBD
Dimension
830 x 300 x 560 mm Custom cabinet designs are possible on request

Computer / Media Player

Operating System
Windows 7 or Android
PC Connectors
USB 2.0, LAN, SD Card slot

Environment

Operating Temperature
0 to 40°C

Additional Information

Operating Temperature

0°C to 40°C
Operating System (OS)

Android, Windows 7
Viewing Angle

89° / 89°
Screen Size

32″
Touch Type

Optional multi-touch sensor
Transparent Type

Display Case
