STB-5001
Description

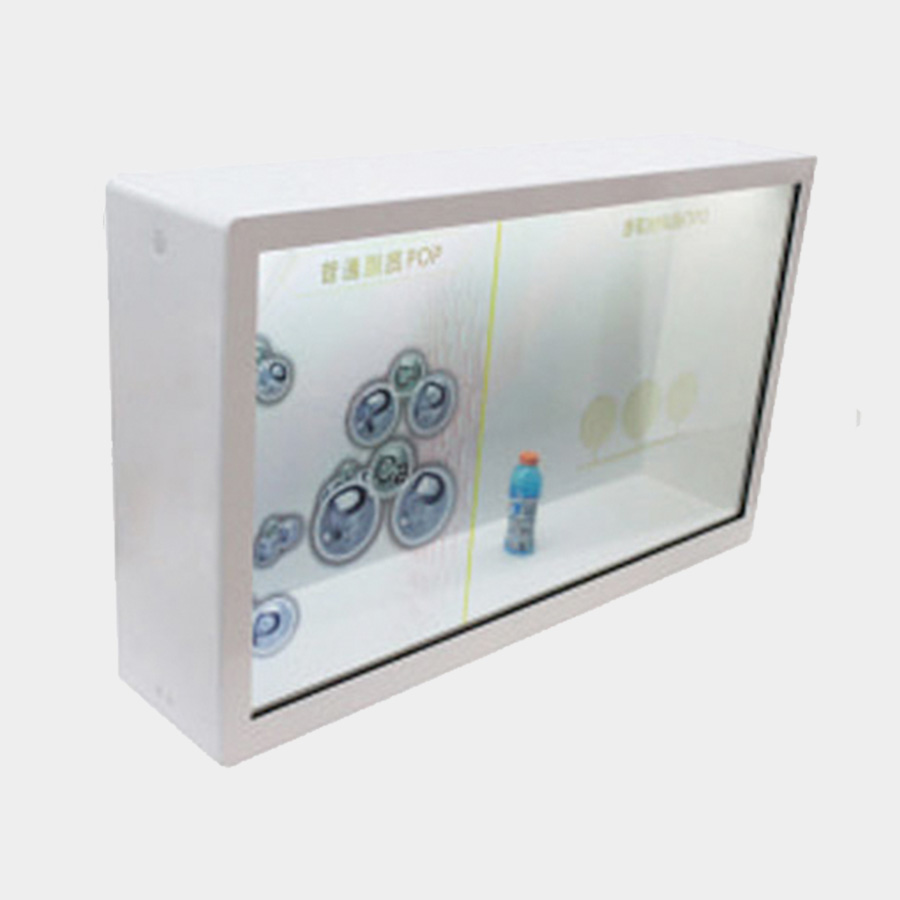

The STB-5001 is a 50″ transparent LCD panel built in an LED lit display case, designed for digital signage and information displays.
The 50″ LCD panel provides 1920 x 1080 resolution, with 4000:1 contrast ratio and 89 degree viewing angles.
Features
50″ Transparent LCD Display Case
Native Resolution 1920×1080 @60Hz
Contrast Ratio: 4000:1
5.5% Light Transmission
89 degree Viewing Angle
Optional Touch Sensor
Built-in PC/media player
PC Expansion through USB/SD card
Description
|
Screen Size
|
50″, 1920 x 1080 resolution
|
|
Display Colours
|
8-bit (16.7M)
|
|
Response Time
|
8ms (G-to-G)
|
|
Transmittance
|
5.5% (Typ)
|
|
Contrast Ratio
|
Typ. 4000:1
|
|
Viewing Angle
|
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
|
|
Backlight Type
|
LED inside case
|
|
Touch Screen
|
Optional multi-touch sensor
|
|
Power Input
|
TBD
|
|
Dimension
|
1240 x 300 x 785 mm Custom cabinet designs are possible on request
|
Computer / Media Player
|
Operating System
|
Windows 7 or Android
|
|
PC Connectors
|
USB 2.0, LAN, SD Card slot
|
Environment
|
Operating Temperature
|
0 to 40°C
|
Additional information
| Operating Temperature | 0°C to 40°C |
|---|---|
| Operating System (OS) | Android, Windows 7 |
| Touch Type | Optional multi-touch sensor |
| Inputs | Built in PC/Media player |
| Viewing Angle | 89° / 89° |
| Screen Size | 50" |
| Transparent Type | Display Case |
