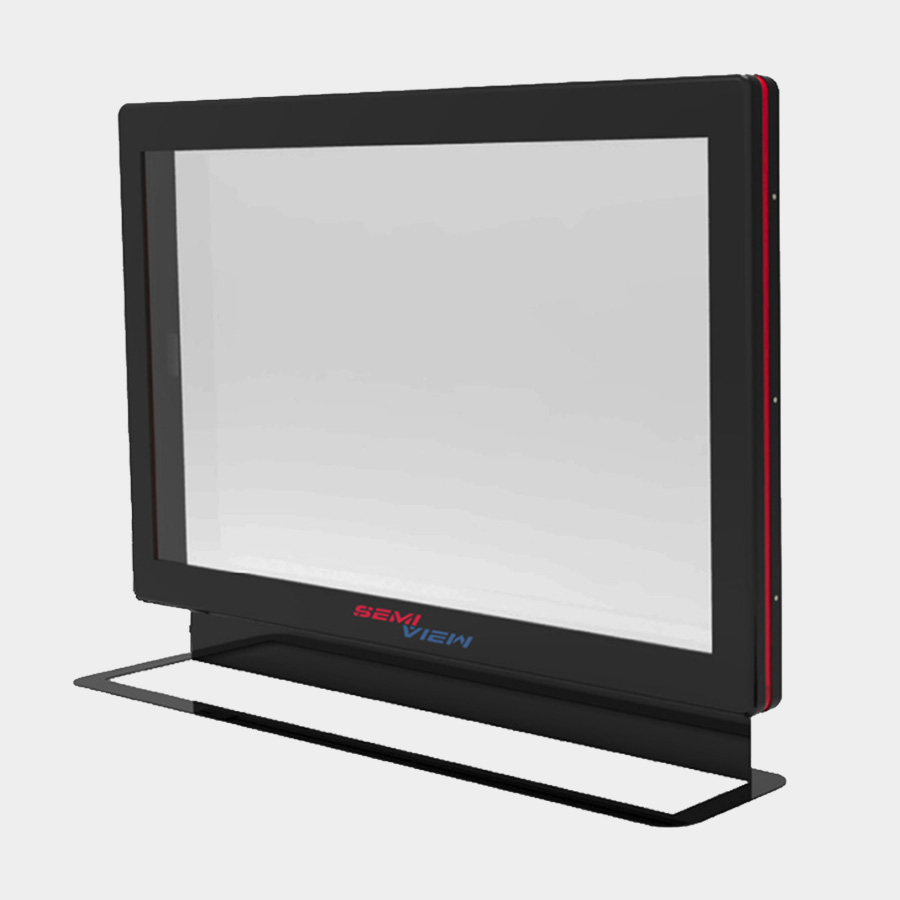

SV-4601
Description
SemiView offers a unique method of advert delivery, by using a blend of patented technologies to create a seemingly transparent display that switches from see-through to opaque at a touch of a button.
The SV-4601 is a 46″ LCD Display with a magic film layer and bright LED backlight system, and the system can be switched by manual or sensor input.
Features
46″ Switchable Transparent LCD Display
1366 x 768 reolsution
HDMI input
178o Viewing Angle
Intelligent Glass Technology
1000:1 Contrast Ratio
Downloads:
Description
|
Screen Size
|
46″, 1366 x 768 resolution
|
|
Display Colours
|
8-bit
|
|
Contrast Ratio
|
1000:1
|
|
Viewing Angle
|
Horizontal: Typ. 178°, Vertical: Typ. 178°
|
|
Pixel Pitch
|
0.7455 x 0.7455
|
|
Power Input
|
AC 110-240V
|
|
Dimension
|
1136 x 713 x 61 mm
|
|
Weight
|
TBD
|
|
Options
|
Optional touch sensor is available.
|
I/O Ports
|
Digital
|
HDMI
|
|
Media Support
|
For full transparency, the LCD should display pure white. Any other colours would still be visible.
|
|
External Controls
|
If you would like to control the transparent switching through sensors or touch input, please contact us to discuss.
|
Environment
|
Temperature
|
Operating: 10 to 50°C
|
|
Humidity
|
Operating: 0 to 90%
|
Additional information
| Screen Size | 46" |
|---|---|
| Inputs | HDMI |
| Viewing Angle | 178° / 178° |
| Touch Type | Touch sensor is available |
| Transparent Type | SemiView |
