SWB-65PHQT
Description

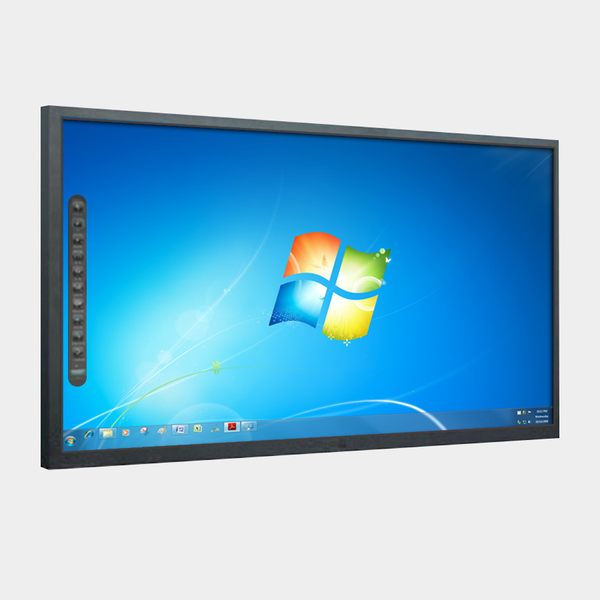

The SWB-65PHQT is a 65″ 4K interactive whiteboard designed for multi-user classrooms and meeting rooms.
The 65″ LCD panel provides 3840 x 2160 (4K) resolution, with 1400:1 contrast ratio for high quality image display, and HDMI and DP inputs.
Features
65″ 4K Interactive Whiteboard
Native Resolution 3840×2160
Contrast Ratio: 1400:1
Wide Viewing Angle
10-point IR Multi-Touch
50,000hrs Lifetime
Optional Wall Mount or Floor Stand
Downloads:
Description
|
Screen Size
|
65″, 3840 x 2160 resolution
|
|
Display Colours
|
10-bit (1.06 Billion)
|
|
Response Time
|
5ms G-to-G (Typ.)
|
|
Luminance
|
350cd/m2
|
|
Contrast Ratio
|
Typ. 1400:1
|
|
Viewing Angle
|
Horizontal: Typ. 89°/89°, Vertical: Typ. 89°/89°
|
|
Refresh Rate
|
120Hz @ 4K on DP, 30Hz @ 4K on HDMI-3, 120Hz @ 1080p on all digital connections
|
|
Backlight Lifetime
|
50,000hrs
|
|
Total Power Consumption
|
190W (Typ.)
|
|
Power Input
|
100~240V AC
|
Touch Screen
|
Touch Sensor Type
|
10-point Infra-Red sensor
|
|
Controller Type
|
1 x USB connector
|
|
Touch Method
|
Pen, Finger
|
Connectors
|
Display Port
|
1 x 20-pin DP (4K @ 120Hz)
|
|
HDMI
|
3 x 19-pin, port 3 for 4K @ 30Hz, port 1/2 for up to 1080p
|
|
Other connections
|
1 x 20-pin DP (1080p only), 1 x DVI-D (1080p only), 1 x VGA (1080p only)
|
|
Audio
|
Built-in audio amp with 3.5mm jack input
|
Enviroment
|
Operating Temperature
|
0 to 50°C
|
|
Humidity
|
10 to 90% RH
|
|
Altitude
|
0 to 15,000ft
|
Additional information
| Screen Size | 65" |
|---|---|
| Inputs | DVI, HDMI, VGA |
| Touch Type | 10 point infrared sensor |
| Viewing Angle | 89° / 89° |
| Operating Temperature | 0°C to 50°C |
| Brightness | 50cd/m² (Typ.) |
