TIM-231NH
Description

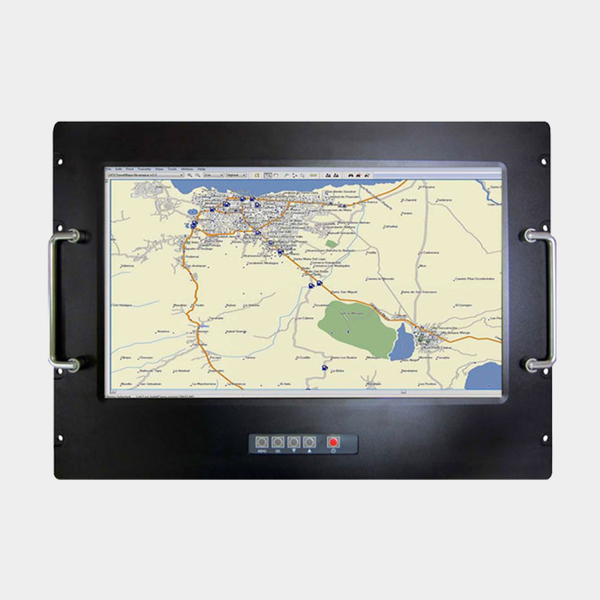

The TIM-231NH is a 23.1″ console mount industrial monitor designed for industrial automation and marine applications. The 23.1″ LCD panel provides 1600 x 1200 (UXGA) resolution.
The anti-ust aluminium chassis and tempered glass offer advanced protection from harsh environments.
Features
23.1″ Panel Mount Monitor
1600 x 1200 Resolution
VGA, DVI inputs
Console/Panel Mount
Brightness: 500cd
Support AC 100-240V input
Certified to ABS, BV, DNV, GL, KR, LR, NK
Suitable for:
Factory Automation & Marine
Downloads:
Description
|
Screen Size
|
23.1″, 1600 x 1200 resolution
|
|
Display Colours
|
16.7M
|
|
Pixel Pitch
|
0.294 x 0.294 mm
|
|
Luminance
|
Typ. 500cd/m2
|
|
Response Time
|
12ms
|
|
Viewing Angle
|
Horizontal: Typ. 85°/85°, Vertical: Typ. 85°/85°
|
|
Input Frequency
|
Hor. 31.5-80 KHz, Ver. 55-76Hz
|
|
Contrast Ratio
|
Typ. 600:1
|
|
Mount Type
|
Console mount and Panel mount
|
|
Power Input
|
AC 100-240V (80W max)
|
|
Dimension
|
626 x 539 x 89.8 mm
|
|
Weight
|
18.5Kg
|
|
Options
|
Dimming 0-100%
|
|
Approval & Certification
|
IEC 60945, IACS E-10, ABS, BV, DNV, GL, KR, LR, NK
|
I/O Ports
|
Digital
|
DVI-I
|
|
Analogue
|
15-pin VGA
|
Environment
|
Operating Temperature
|
0 to 50°C
|
|
Storage Temperature
|
-20 to 60°C
|
|
Humidity
|
up to 95%
|
Additional information
| Mount Type | Console Mount |
|---|---|
| Screen Size | 23.1" |
| Brightness | 500cd/m² |
| Viewing Angle | 85° / 85° |
| Inputs | DVI, VGA |
| Operating Temperature | 0°C to 50°C |
| Monitor Type | Marine |
