TIP-070WT
Description
The TIP-070WT is a fanless rack mount panel PC with low power consumption due to the ARM Cortex A8 CPU and is designed to be lowered into the front of a console. The built-in 7.0″ LCD panel provides 800 x 480 (WVGA) resolution, and the 4-wire resistive touch sensor provides precise control.
The CAN-BUS and USB ports are among the many I/O ports available, along with 18~24VDC power supply.
Features
7.0″ Low Power Panel PC
Supports ARM Cortex A8 CPU
10/100 LAN
4 wire resistive touch screen

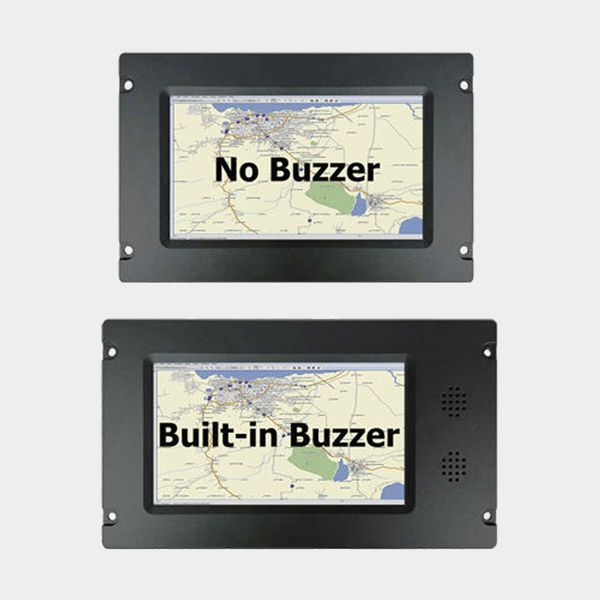

Optional Buzzer
Rack/Console mount
Suitable for:
Marine Systems
Industrial Automation
Downloads:
Description
|
CPU Type
|
ARM Cortex A8 (S5PV210, 1GHz)
|
|
Memory Support
|
512MB SDRAM
|
|
Front Bezel
|
Steel
|
|
Waterproof Level
|
IP65 front side
|
|
Power Supply
|
18~36Vdc input
|
|
O/S Support
|
Win CE 6.0
|
|
Dimension
|
216 x 138 x 45mm (w/o buzzer), 241 x 140 x 45mm (w/ buzzer)
|
|
Basic System Weight
|
1.10kg (w/o buzzer), 1.26kg (w/o buzzer)
|
|
Mounting support
|
Rack Mount
|
|
Certificate
|
DNV / CE / FCC
|
I/O Ports
|
Storage
|
512MB NAND Flash + MicroSD card expansion
|
|
USB
|
2 x USB 2.0
|
|
Serial Ports
|
4 x RS485
|
|
LAN
|
1 x 10/100Mbps
|
|
CANBUS
|
2 x CAN 2.0
|
|
LCD
|
7.0″ WVGA TFT LCD
|
|
Brightness
|
400cd/m2
|
|
Contrast
|
500:1
|
|
Touch Screen
|
4 wire analogue resistive (USB interface)
|
|
Optional Buzzer
|
1) Min. 85dB (350-500Hz) built-in internal control
2) Min. 95dB (2.7-3.7kHz) built-in external control |
Environment
|
Temperature
|
Operating: 0 to 60°C, Storage: -20 to 80°C
|
|
Humidity
|
0 to 95%
|
Additional information
| Core | ARM Cortex A8 |
|---|---|
| Mount Type | Console Mount, Rack Mount |
| Operating System (OS) | CE |
| Operating Temperature | 0°C to 60° C |
| Screen Size | 7" |
| IP Rating | IP65 Front Side (Only) |
