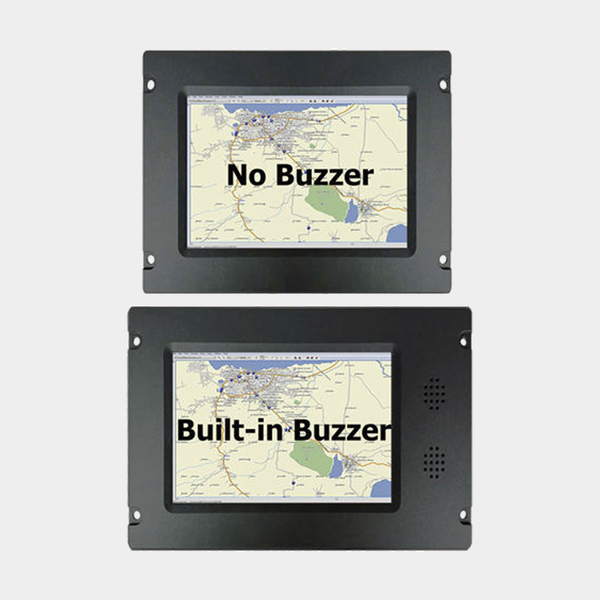

TIP-080NT
Click to enlarge

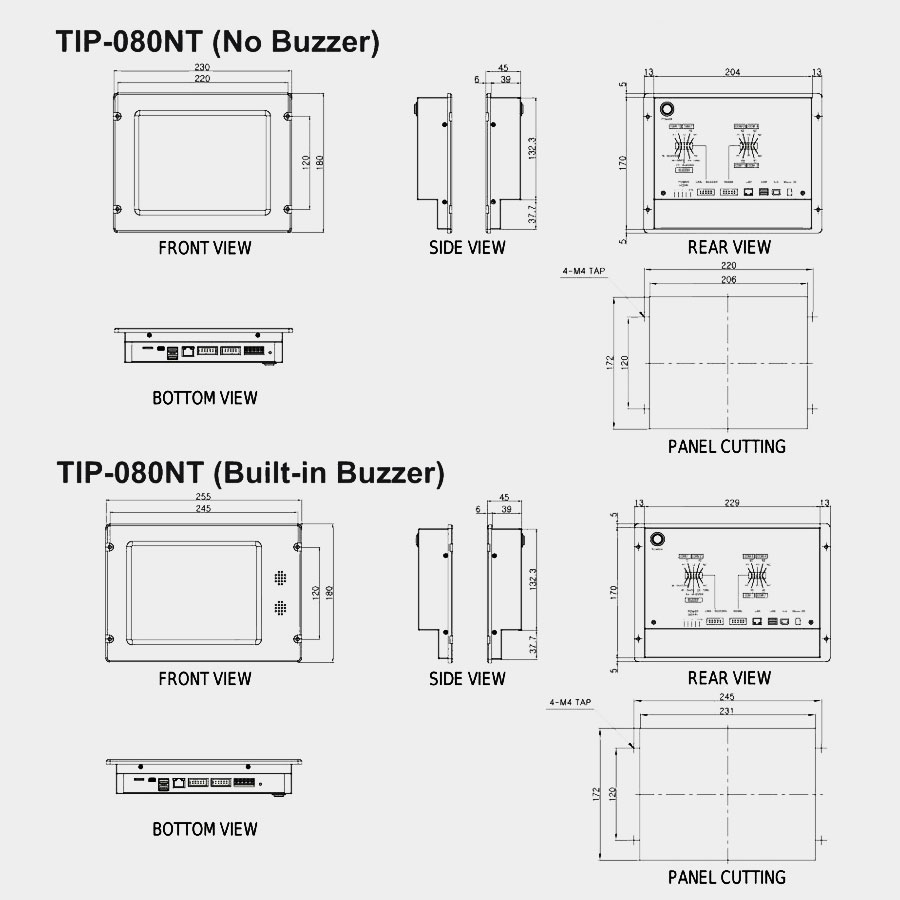

TIP-080NT tip-080nt_drawing

8" ARM Cortex A8 Marine HMI

TIP-080NT

Description

The TIP-080NT is a fanless rack mount panel PC with low power consumption due to the ARM Cortex A8 CPU and is designed to be lowered into the front of a console. The built-in 8.0″ LCD panel provides 800 x 600 (SVGA) resolution, and the 4-wire resistive touch sensor provides precise control.
The CAN-BUS and USB ports are among the many I/O ports available, along with 18~24VDC power supply.

Features

8.0″ Low Power Panel PC
Supports ARM Cortex A8 CPU
10/100 LAN
4 wire resistive touch screen
Optional Buzzer
Rack/Console mount

Suitable for:

Marine Systems
Industrial Automation

Downloads:

Datasheet
SKU: 8" ARM Cortex A8 Marine HMI Categories: , Tags: , , , , ,

Product Description

CPU Type
ARM Cortex A8 (S5PV210, 1GHz)
Memory Support
512MB SDRAM
Front Bezel
Steel
Waterproof Level
IP65 front side
Power Supply
18~36Vdc input
O/S Support
Win CE 6.0
Dimension
230 x 180 x 45mm (w/o buzzer), 255 x 180 x 45mm (w/ buzzer)
Basic System Weight
1.50kg (w/o buzzer), 1.69kg (w/o buzzer)
Mounting support
Rack Mount
Certificate
DNV / CE / FCC

I/O Ports

Storage
512MB NAND Flash + MicroSD card expansion
USB
2 x USB 2.0
Serial Ports
4 x RS485
LAN
1 x 10/100Mbps
CANBUS
2 x CAN 2.0
LCD
8.0″ SVGA TFT LCD
Brightness
250cd/m2
Contrast
500:1
Touch Screen
4 wire analogue resistive (USB interface)
Optional Buzzer
1) Min. 85dB (350-500Hz) built-in internal control
2) Min. 95dB (2.7-3.7kHz) built-in external control

Environment

Temperature
Operating: 0 to 60°C, Storage: -20 to 80°C
Humidity
0 to 95%

Additional Information

Core

ARM Cortex A8
Mount Type

Console Mount, Rack Mount
Operating System (OS)

CE
Operating Temperature

0°C to 60° C
Screen Size

8″
IP Rating

IP65 Front Side (Only)
