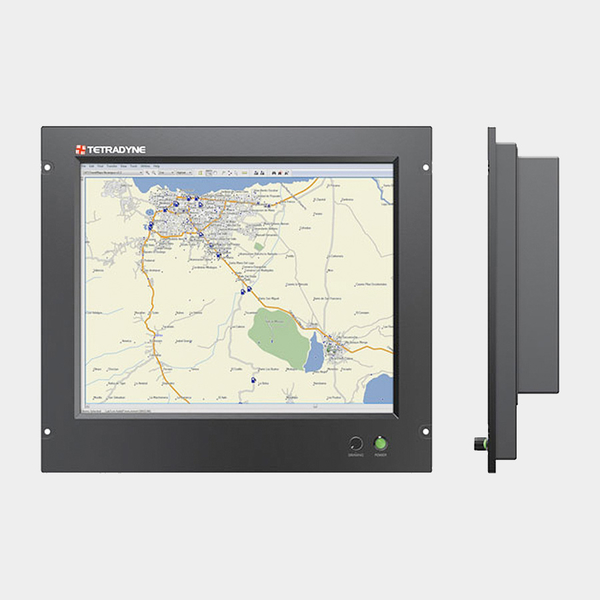

12.1" Intel Core i3 Marine HMI

TIP-121NT

Description

The TIP-121NT is a high performance rack mount panel PC with multi-processing support due to the Intel Core i3-2310M CPU and is designed to be lowered into the front of a console. The built-in 12.1″ LCD panel provides 1024 x 768 (XGA) resolution, and the 5-wire resistive touch sensor provides precise control.
The dual Gigabit LAN and four USB ports are among the many I/O ports available, along with optional AC or DC power supply.

Features

12.1″ High Performance Panel PC
Supports Core i3-2310M CPU
Dual Gigabit LAN
5 wire resistive touch screen
Support up to 8GB of RAM
Rack/Console mount

Suitable for:

Marine Systems
Industrial Automation

Downloads:

Datasheet
SKU: 12.1" Intel Core i3 Marine HMI Categories: , Tags: , , , ,

Product Description

CPU Type
Intel Core i3-2310M (up to 2.1GHz)
Memory Support
1pcs x DDR-3 SO-DIMM socket (Standard: 4GB, Optional: 8GB)
Front Bezel
Steel
Waterproof Level
IP65 front side
Power Supply
220Vac power supply or optional 18~36Vdc input
O/S Support
Win 7 Pro / 7e
Dimension
330 x 270 x 78mm
Basic System Weight
3.98kg
Mounting support
Rack Mount
Certificate
DNV / CE / FCC

I/O Ports

Storage
1 x 128GB SSD (Optional up to 1TB SSD)
USB
4 x USB 2.0
Serial Ports
2 x 9-pin*, COM1 for RS232/422/485
LAN
2 x 10/100/1000Mbps
Graphics
Optional VGA, HDMI and DP
LCD
12.1″ XGA TFT LCD
Brightness
500cd/m2
Contrast
700:1
Touch Screen
5 wire analogue resistive (USB interface)

Environment

Temperature
Operating: 0 to 60°C, Storage: -20 to 80°C
Humidity
0 to 95%

Additional Information

Core

Intel, Intel Core i3
Mount Type

Console Mount, Rack Mount
Operating System (OS)

Windows 7
Operating Temperature

0°C to 60° C
Screen Size

12″
IP Rating

IP65 Front Side (Only)
