TIP-170NT
Description

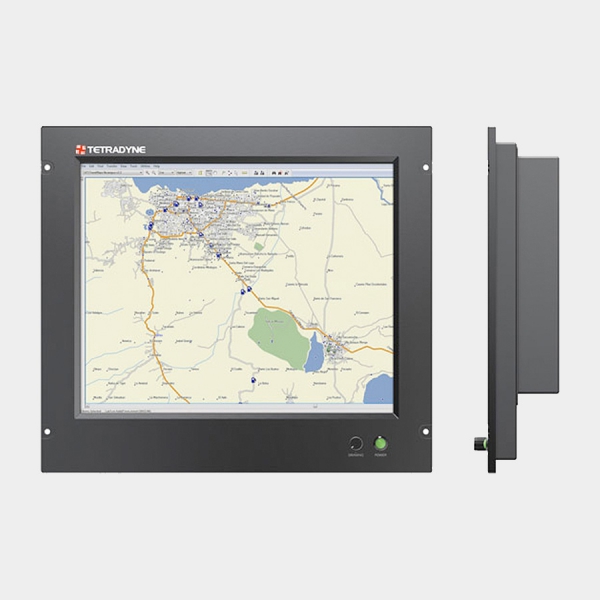

The TIP-170NT is a high performance rack mount panel PC with multi-processing support due to the Intel Core i3-2310M CPU and is designed to be lowered into the front of a console. The built-in 17″ LCD panel provides 1280 x 1024 (SXGA) resolution, and the 5-wire resistive touch sensor provides precise control.
The dual Gigabit LAN and four USB ports are among the many I/O ports available, along with optional AC or DC power supply.
Features
17″ High Performance Panel PC
Supports Core i3-2310M CPU
Dual Gigabit LAN
5 wire resistive touch screen
Support up to 8GB of RAM
Rack/Console mount
Suitable for:
Marine Systems
Industrial Automation
Downloads:
Description
|
CPU Type
|
Intel Core i3-2310M (up to 2.1GHz)
|
|
Memory Support
|
1pcs x DDR-3 SO-DIMM socket (Standard: 4GB, Optional: 8GB)
|
|
Front Bezel
|
Steel
|
|
Waterproof Level
|
IP65 front side
|
|
Power Supply
|
220Vac power supply or optional 18~36Vdc input
|
|
O/S Support
|
Win 7 Pro / 7e
|
|
Dimension
|
440 x 388 x 86.8mm
|
|
Basic System Weight
|
6.04kg
|
|
Mounting support
|
Rack Mount
|
|
Certificate
|
DNV / CE / FCC
|
I/O Ports
|
Storage
|
1 x 128GB SSD (Optional up to 1TB SSD)
|
|
USB
|
4 x USB 2.0
|
|
Serial Ports
|
2 x 9-pin*, COM1 for RS232/422/485
|
|
LAN
|
2 x 10/100/1000Mbps
|
|
Graphics
|
Optional VGA, HDMI and DP
|
|
LCD
|
17″ SXGA TFT LCD
|
|
Brightness
|
350cd/m2
|
|
Contrast
|
800:1
|
|
Touch Screen
|
5 wire analogue resistive (USB interface)
|
Environment
|
Temperature
|
Operating: 0 to 60°C, Storage: -20 to 80°C
|
|
Humidity
|
0 to 95%
|
Additional information
| Screen Size | 17" |
|---|---|
| Core | Intel, Intel Core i3 |
| Mount Type | Console Mount, Rack Mount |
| Operating System (OS) | Windows 7 |
| Operating Temperature | 0°C to 60° C |
| IP Rating | IP65 Front Side (Only) |
