TPC121
Description

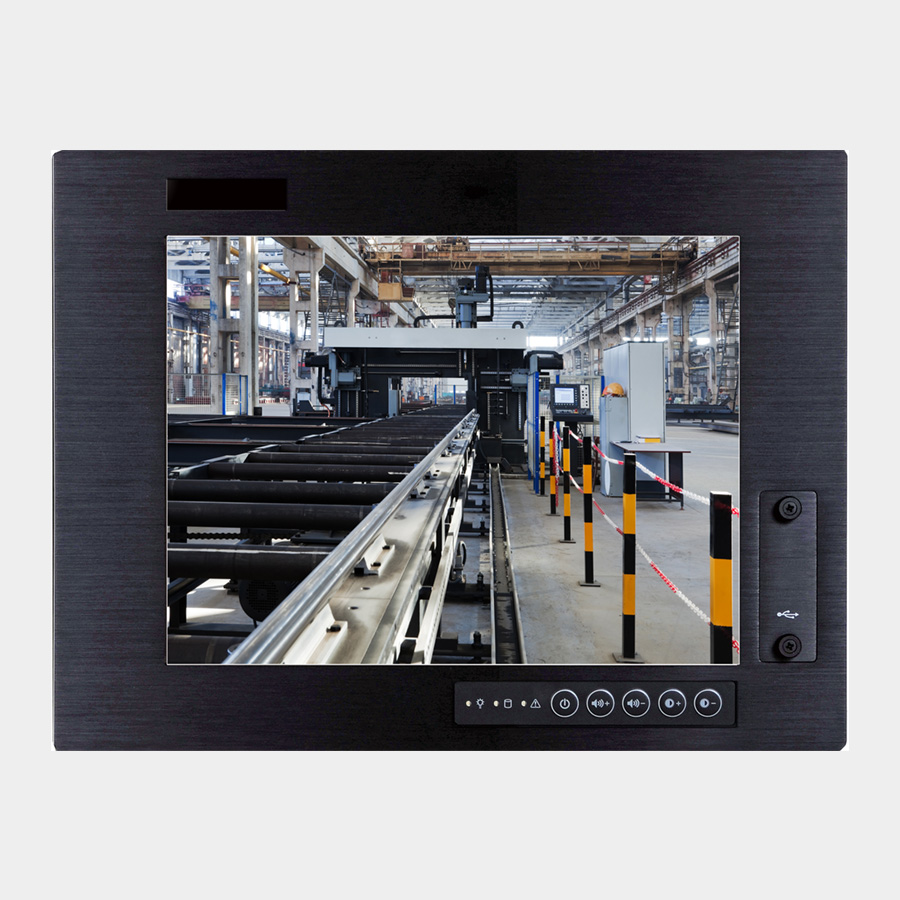

The TPC-121 is a high performance panel mount panel PC with multi-processing support due to the Intel Core i5/i7 CPU and is designed to be lowered into the front of a cabinet. The 5-wire resistive touch sensor provides precise control.
The dual Gigabit LAN and two COM ports are among the many I/O ports available on this panel PC, along with optional 802.11g/n wireless, and expansion is possible with 1 x PCI or PCI-e slot.
Features
12.1″ High Performance Panel PC
Supports Dual Core CPU
Dual 1000Mbps LAN
5 wire resistive touch screen
Support up to 16GB of RAM
Optional 75/100mm VESA mount
Stainless Steel IP65 front bezel
Suitable for:
Factory Control
Industrial Automation
Downloads:
Description
|
CPU Type
|
2nd or 3rd generation Intel Core Processors / Pentium (LGA1155)
|
|
Memory Support
|
2pcs x DDR-3 SO-DIMM socket (up to 16GB)
|
|
Front Bezel
|
Stainless Steel
|
|
Waterproof Level
|
IP65 front side
|
|
Power Supply
|
24V DC input
|
|
O/S Support
|
Win XP / 7 / 8 and Linux Ubuntu 13
|
|
Dimension
|
345 x 265 x 103mm
|
|
Basic System Weight
|
6.5kg
|
|
VESA support
|
75mm / 100mm VESA bracket (optional)
|
|
Certificate
|
CE / FCC / UL
|

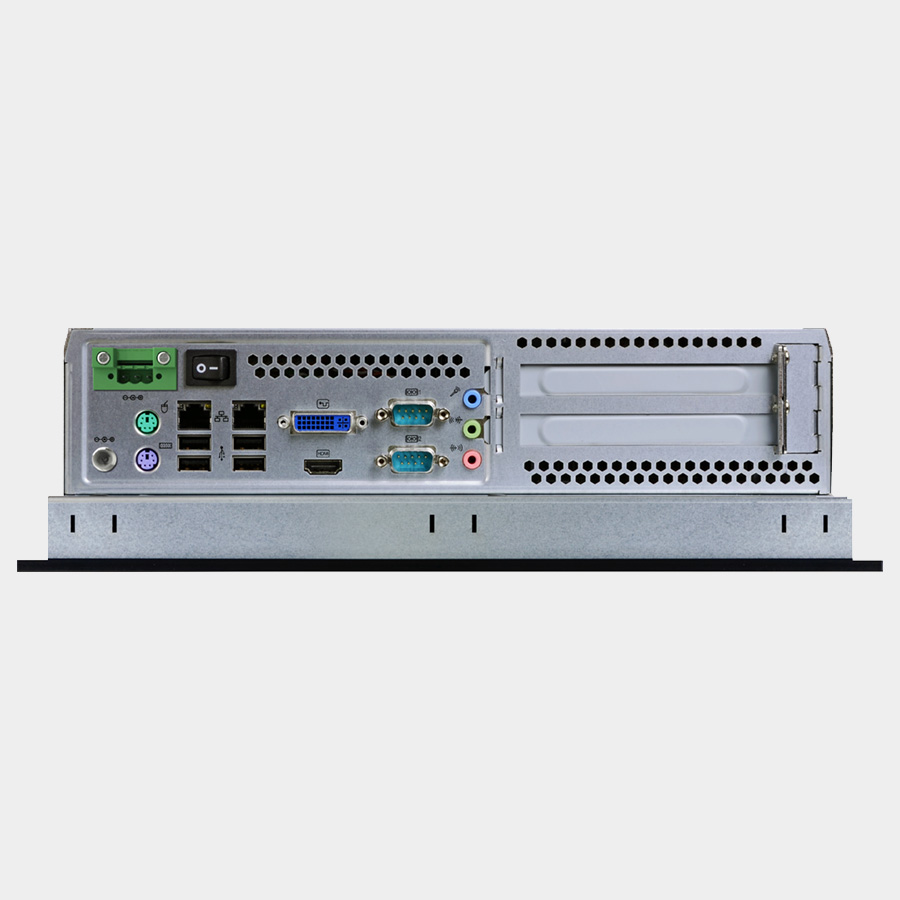

I/O Ports
|
Drive Bays
|
1 x 2.5″ SATA HDD, and 1 x slim SATA CD
|
|
USB
|
4 x USB 2.0 (rear), 2 x USB 2.0 (front)
|
|
Serial Ports
|
2 x 9-pin*, COM2 for RS232/422/485
|
|
Parallel
|
n/a
|
|
Keyboard/Mouse
|
2 x PS/2
|
|
LAN
|
2 x 10/100/1000Mbps
|
|
Wireless LAN
|
Optional 802.11b/g/n card
|
|
Audio
|
Line-in, Line-out, MIC
|
|
Expansion
|
1 x PCI, 1 x PCI-e x1 and 1 x mini-PCIe
|
|
Video-out
|
1 x DVI-I and 1 x HDMI
|
|
Digital I/O
|
n/a
|
|
LCD
|
12.1″ XGA TFT LCD
|
|
Touch Screen
|
5 wire analogue resistive (USB interface)
|
Environment
|
Temperature
|
Operating: -10 to 50°C, Storage: -20 to 60°C
|
|
Humidity
|
20 to 90%
|
Additional information
| Core | Intel, Intel Core i5, Intel Core i7 |
|---|---|
| Expansion | mini PCI-e, PCI, PCI-e |
| Mount Type | Panel Mount, VESA Mount |
| Operating Temperature | -10°C to +40°C |
| Fanless | Smart fan for quiet environments |
| Screen Size | 12" |
| IP Rating | IP65 Front Side (Only) |
