Product Description
|
CPU Type
|
2nd or 3rd generation Intel Core Processors / Pentium (LGA1155)
|
|
Memory Support
|
2pcs x DDR-3 SO-DIMM socket (up to 16GB)
|
|
Front Bezel
|
Stainless Steel
|
|
Waterproof Level
|
IP65 front side
|
|
Power Supply
|
250W ATX AC power supply
|
|
O/S Support
|
Win XP / 7 / 8 and Linux Ubuntu 13
|
|
Dimension
|
410 x 320 x 106mm
|
|
Basic System Weight
|
9.6kg
|
|
VESA support
|
75mm / 100mm VESA bracket (optional)
|
|
Certificate
|
CE / FCC / UL
|

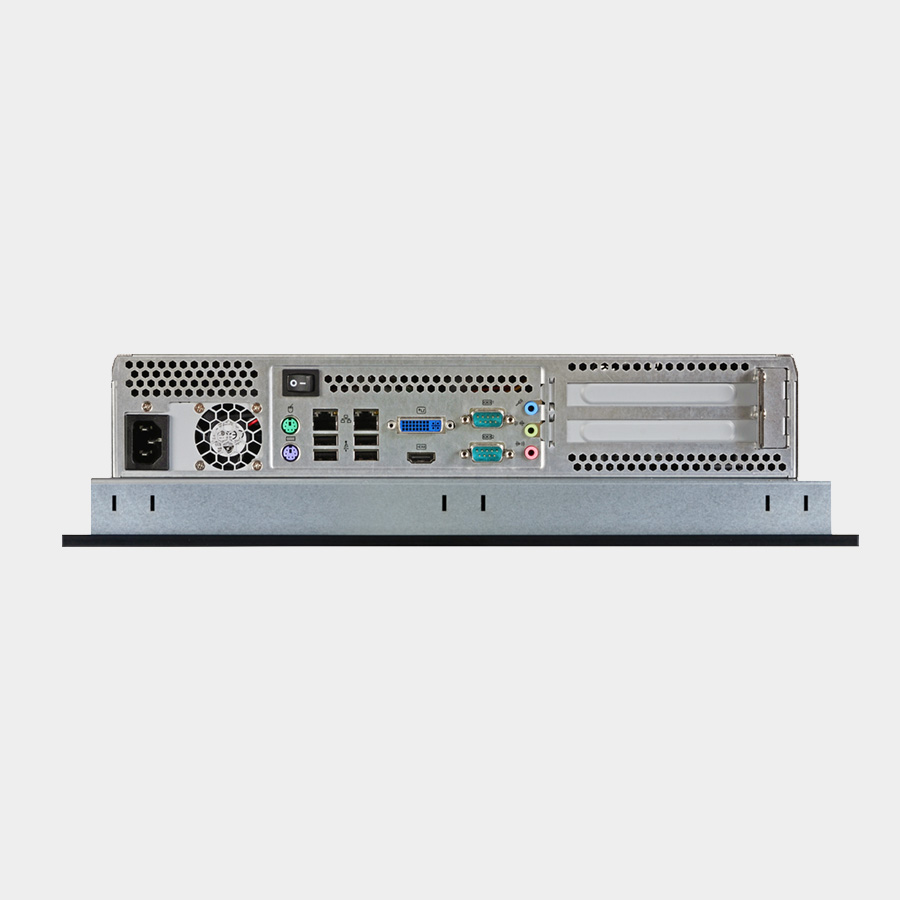

I/O Ports
|
Drive Bays
|
1 x 2.5″ SATA HDD, and 1 x slim SATA CD
|
|
USB
|
4 x USB 2.0 (rear), 2 x USB 2.0 (front)
|
|
Serial Ports
|
2 x 9-pin*, COM2 for RS232/422/485
|
|
Parallel
|
n/a
|
|
Keyboard/Mouse
|
2 x PS/2
|
|
LAN
|
2 x 10/100/1000Mbps
|
|
Wireless LAN
|
Optional 802.11b/g/n card
|
|
Audio
|
Line-in, Line-out, MIC
|
|
Expansion
|
1 x PCI, 1 x PCI-e x1 and 1 x mini-PCIe
|
|
Video-out
|
1 x DVI-I and 1 x HDMI
|
|
Digital I/O
|
n/a
|
|
LCD
|
15″ XGA TFT LCD
|
|
Touch Screen
|
5 wire analogue resistive (USB interface)
|
Environment
|
Temperature
|
Operating: -10 to 50°C, Storage: -20 to 60°C
|
|
Humidity
|
20 to 90%
|
