WP-END24RF
Description

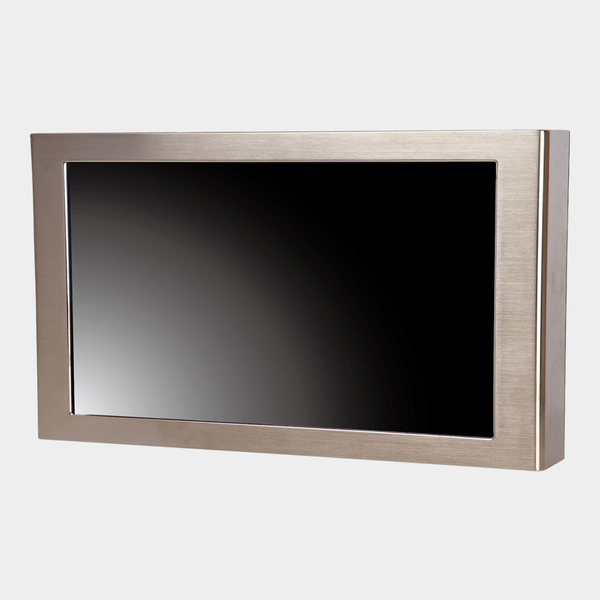

The WP-END24RF is a completely sealed waterproof 24″ panel PC that can still provide great performance due to the Intel Celeron J1900 CPU and is designed to be VESA mounted. The 5-wire resistive touch sensor provides precise control.
The Gigabit LAN, and COM ports are among the many I/O ports available on this panel PC all sealed to IP65 rating, so the WP-END24RF is perfect for food and chemical industries, or any harsh environments.
Features
24″ Fully Waterproof Panel PC
Support Intel Celeron J1900 (2.0GHz)
Gigabit LAN
Support DC power supply
Sealed resistive touch screen
Support up to 8GB of RAM
Totally 6 sided IP65 rated
Stainless steel chassis
Suitable for:
Food Processing Plant, Abattoir
Submarines, Military Ships
Description
|
CPU Type
|
Intel Celeron J1900 (2.0GHz)
|
|
Memory Support
|
1pcs x DDR-3L SO-DIMM socket (up to 8GB)
|
|
Bezel
|
Stainless Steel
|
|
Waterproof Level
|
IP65 6-side
|
|
Power Supply
|
DC 12V direct, or External AC 90~264V PSU (IP65 optional)
|
|
O/S Support
|
Win 7/7e, 8/8e or 10
|
|
Dimension
|
TBC
|
|
Basic System Weight
|
20kg
|
|
VESA support
|
100mm VESA bracket (optional)
|
|
Certificate
|
CE / FCC
|
I/O Ports
|
Drive Bays
|
1 x 2.5″ HDD
|
|
USB
|
1 x USB 2.0 (x6 if without full IP65 rating)
|
|
Serial Ports
|
2 x 9-pin (x6 if without full IP65 rating)
|
|
LAN
|
1 x 10/100/1000Mbps
|
|
Port Location
|
All ports on rear of unit
|
LCD / Touch
|
LCD
|
24″ FullHD TFT LCD
|
|
Brightness
|
250cd/m2
|
|
Touch Screen
|
5 wire analogue resistive (USB interface)
|
|
Options
|
Toughened Glass
|
Environment
|
Temperature
|
Operating: 0 to 40°C, Storage: -10 to 70°C
|
|
Humidity
|
0 to 95%
|
Additional information
| Core | Intel, Intel Celeron |
|---|---|
| Mount Type | VESA Mount |
| Operating System (OS) | Windows 10, Windows 7, Windows 7 e, Windows 8, Windows 8 e, Windows 8.1 |
| Operating Temperature | 0°C to 45°C |
| Screen Size | 24" |
| IP Rating | Fully IP65 |
